End mill adapter Weldon Typ L

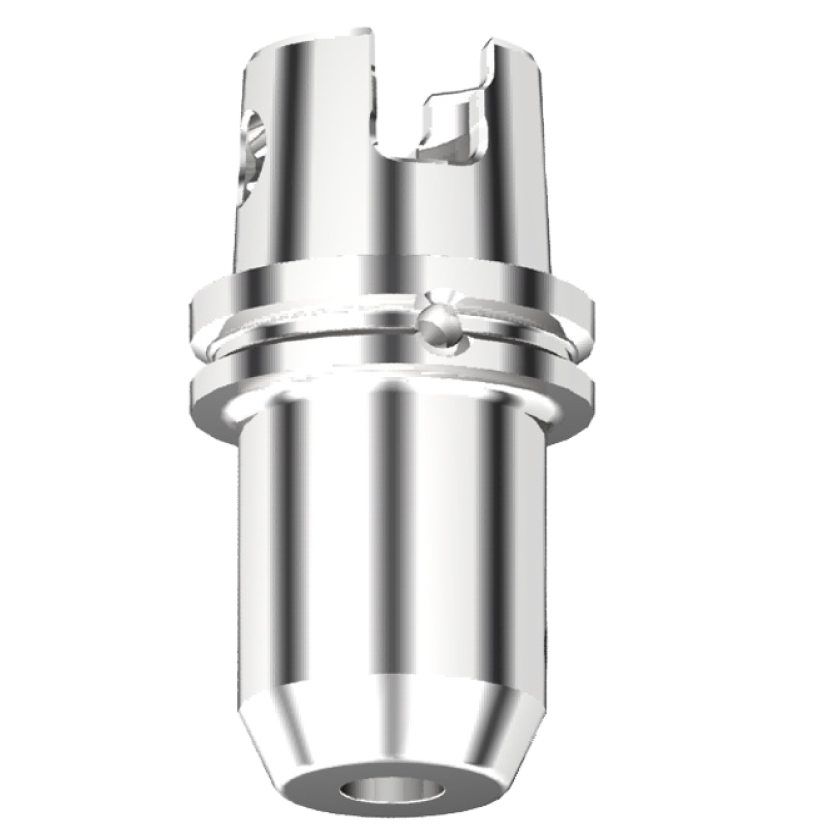

End Mill Holder KM 63 XMZ- to clamp tools with cylindrical shank according to DIN 1835 B
| Bestell-Nr. | d | D | L | L1 | J1 | dxf | step |  |
|
| KY6.W06.K01.060 | 6 | 25 | 60 | 42 | M6 |  |
 |
 |
 |
| KY6.W06.K01.100 | 6 | 25 | 100 | 82 | M6 | |
|
|
|
| KY6.W08.K01.060 | 8 | 28 | 60 | 42 | M8 | |
|
|
|
| KY6.W08.K01.100 | 8 | 28 | 100 | 82 | M8 | |
|
|
|
| KY6.W10.K01.060 | 10 | 35 | 60 | 42 | M10 | |
|
|
|
| KY6.W10.K01.100 | 10 | 35 | 100 | 82 | M10 | |
|
|
|
| KY6.W12.K01.060 | 12 | 42 | 60 | 42 | M12 | |
|
|
|
| KY6.W12.K01.100 | 12 | 42 | 100 | 82 | M12 | |
|
|
|
| KY6.W14.K01.060 | 14 | 45 | 60 | 42 | M12 | |
|
|
 |
| KY6.W14.K01.100 | 14 | 45 | 100 | 82 | M12 | |
|
|
|
| KY6.W16.K01.060 | 16 | 48 | 60 | 42 | M14 | |
|
|
|
| KY6.W16.K01.100 | 16 | 48 | 100 | 82 | M14 | |
|
|
|
| KY6.W18.K01.060 | 18 | 48 | 60 | 42 | M14 | |
|
|
|
| KY6.W18.K01.100 | 18 | 48 | 100 | 82 | M14 | |
|
|
|
| KY6.W20.K01.065 | 20 | 52 | 65 | 47 | M16 | |
|
|
|
| KY6.W20.K01.100 | 20 | 52 | 100 | 82 | M16 | |
|
|
|
| KY6.W25.K01.080 | 25 | 65 | 80 | 62 | M18x2 | |
|
|
|
| KY6.W32.K01.090 | 32 | 72 | 90 | 72 | M20x2 | |
|
|
|
