Aufnahmen

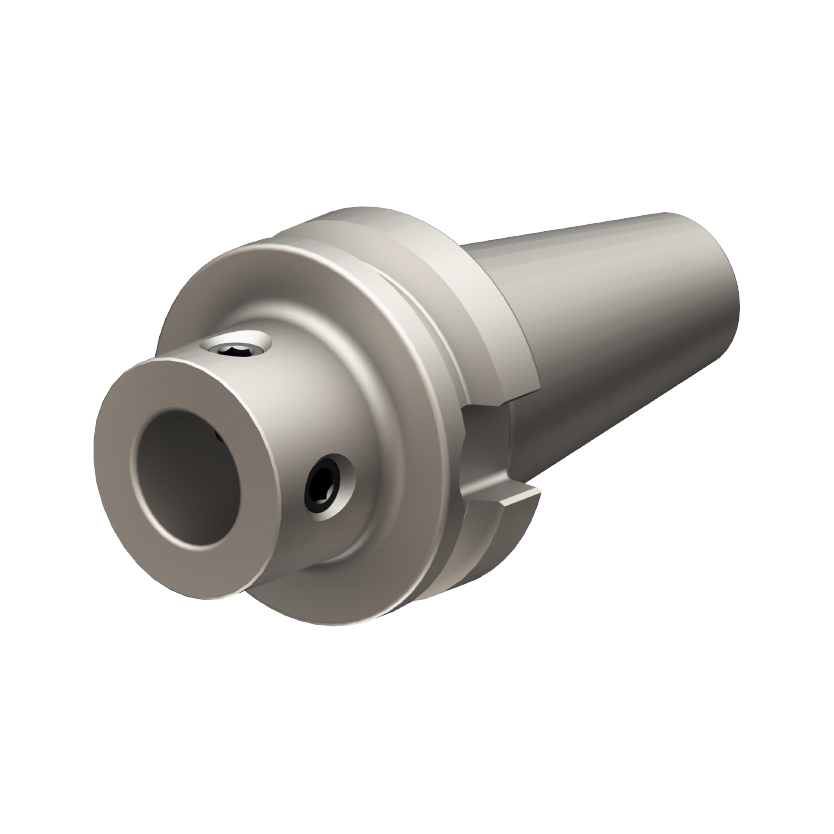

BT 30/40/50 JIS (MAS403) A/D
| Bestell-Nr. | ISO | System Ø D | L | A | M | dxf | step |  |
|
| 102.312.201 | 30 | 20 | 20 | 42 | M12 |  |
 |
 |
 |
| 102.312.251 | 30 | 25 | 20 | 42 | M12 | |
|
|
|
| 102.312.321 | 30 | 32 | 20 | 42 | M12 | |
|
|
|
| 102.312.421 | 30 | 42 | 20 | 42 | M12 | |
|
|
|
| 102.312.551 | 30 | 55 | 20 | 42 | M12 | |
|
|
|
| 102.412.201 | 40 | 20 | 15 | 42 | M16 | |
|
|
|
| 102.412.202 | 40 | 20 | 40 | 67 | M16 | |
|
|
|
| 102.412.251 | 40 | 25 | 25 | 52 | M16 | |
|
|
|
| 102.412.252 | 40 | 25 | 55 | 82 | M16 | |
|
|
|
| 102.412.321 | 40 | 32 | 25 | 52 | M16 | |
|
|
|
| 102.412.322 | 40 | 32 | 65 | 92 | M16 | |
|
|
|
| 102.412.421 | 40 | 42 | 30 | 57 | M16 | |
|
|
|
| 102.412.422 | 40 | 42 | 80 | 107 | M16 | |
|
|
|
| 102.412.551 | 40 | 55 | 40 | 67 | M16 | |
|
|
|
| 102.412.552 | 40 | 55 | 100 | 127 | M16 | |
|
|
|
| 102.412.721 | 40 | 72 | 60 | 87 | M16 | |
|
|
|
| 102.412.941 | 40 | 94 | 60 | 87 | M16 | |
|
|
 |
| 102.512.201 | 50 | 20 | 15 | 53 | M24 | |
|
|
|
| 102.512.202 | 50 | 20 | 40 | 78 | M24 | |
|
|
|
| 102.512.251 | 50 | 25 | 25 | 63 | M24 | |
|
|
|
| 102.512.252 | 50 | 25 | 55 | 93 | M24 | |
|
|
|
| 102.512.321 | 50 | 32 | 25 | 63 | M24 | |
|
|
|
| 102.512.322 | 50 | 32 | 65 | 103 | M24 | |
|
|
|
| 102.512.421 | 50 | 42 | 30 | 68 | M24 | |
|
|
|
| 102.512.422 | 50 | 42 | 80 | 118 | M24 | |
|
|
|
| 102.512.551 | 50 | 55 | 40 | 78 | M24 | |
|
|
|
| 102.512.552 | 50 | 55 | 100 | 138 | M24 | |
|
|
|
| 102.512.721 | 50 | 72 | 60 | 98 | M24 | |
|
|
|
| 102.512.722 | 50 | 72 | 120 | 158 | M24 | |
|
|
|
| 102.512.941 | 50 | 94 | 60 | 98 | M24 | |
|
|
|
| 102.512.942 | 50 | 94 | 150 | 188 | M24 | |
|
|
|
