Aufnahmen

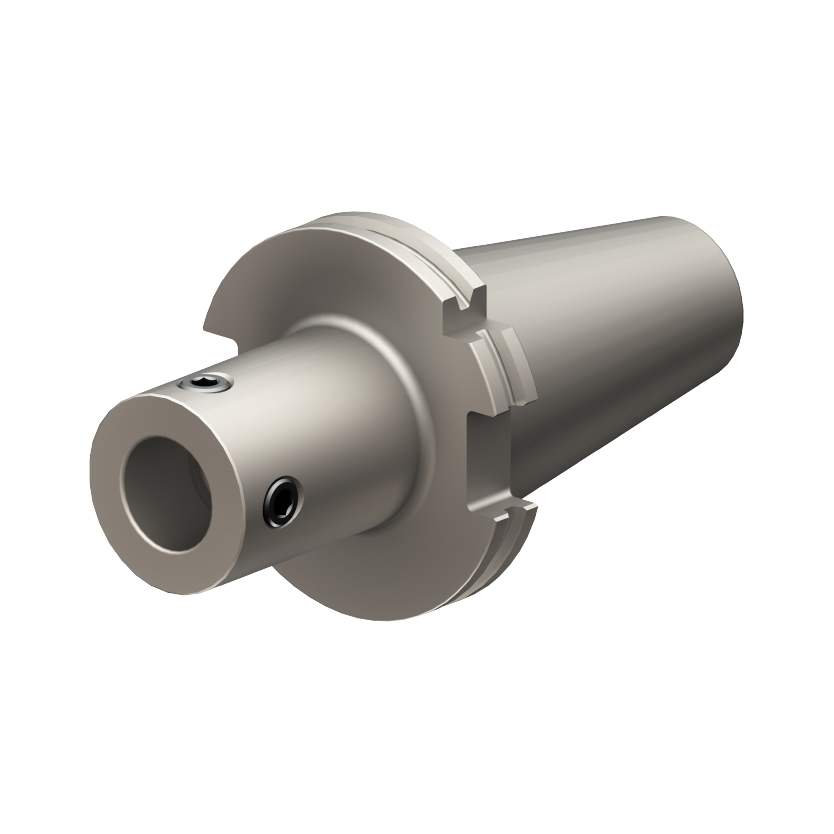

SK 30/40/50 DIN 69871 A/D
| Bestell-Nr. | ISO | ST | D | d1 | A | L | M | dxf | step |  |
|
| 114.430.050.050 | 30 | ST5 | 50 | 28 | 50 | 30.90 | M12 |  |
 |
 |
 |
| 114.440.020.035 | 40 | ST1 | 20 | 11 | 35 | 15.90 | M16 | |
|
|
|
| 114.440.025.040 | 40 | ST2 | 25 | 14 | 40 | 20.90 | M16 | |
|
|
|
| 114.440.032.040 | 40 | ST3 | 32 | 18 | 40 | 20.90 | M16 | |
|
|
|
| 114.440.039.043 | 40 | ST4 | 39 | 22 | 43 | 23.90 | M16 | |
|
|
|
| 114.440.050.043 | 40 | ST5 | 50 | 28 | 43 | 23.90 | M16 | |
|
|
|
| 114.440.064.059 | 40 | ST6+ | 64 | 36 | 59 | 39.90 | M16 | |
|
|
|
| 114.450.020.045 | 50 | ST1 | 20 | 11 | 45 | 25.90 | M24 | |
|
|
|
| 114.450.025.050 | 50 | ST2 | 25 | 14 | 50 | 30.90 | M24 | |
|
|
|
| 114.450.032.050 | 50 | ST3 | 32 | 18 | 50 | 30.90 | M24 | |
|
|
|
| 114.450.039.053 | 50 | ST4 | 39 | 22 | 53 | 33.90 | M24 | |
|
|
|
| 114.450.050.053 | 50 | ST5 | 50 | 28 | 53 | 33.90 | M24 | |
|
|
|
| 114.450.064.069 | 50 | ST6+ | 64 | 36 | 69 | 49.90 | M24 | |
|
|
|
| 114.450.090.085 | 50 | ST7+ | 90 | 46 | 85 | 65.90 | M24 | |
|
|
|
