Bohrstangenhalter
PSC

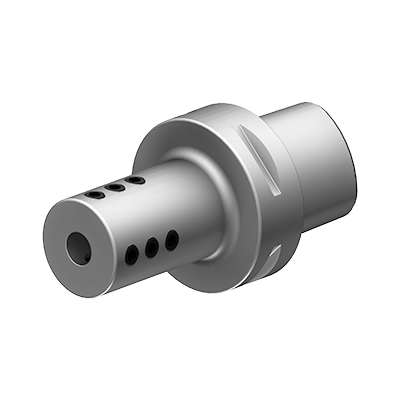

Bohrstangenhalter - zur Aufnahme von Bohrstangen
- mit Innenkühlung
| Bestell-Nr. | PSC | D1 | D2 | A | L | dxf | step |  |
|
| PS4.B06.K01.065 | 40 | 6 | 34 | 65 | 43 |  |
 |
 |
 |
| PS4.B08.K01.065 | 40 | 8 | 34 | 65 | 43 | |
|
|
|
| PS4.B10.K01.065 | 40 | 10 | 34 | 65 | 43 | |
|
|
|
| PS4.B12.K01.065 | 40 | 12 | 36 | 65 | 43 | |
|
|
|
| PS4.B16.K01.065 | 40 | 16 | 40 | 65 | 43 | |
|
|
 |
| PS4.B20.K01.065 | 40 | 20 | 44 | 65 | 43 | |
|
|
|
| PS5.B06.K01.070 | 50 | 6 | 34 | 70 | 48 | |
|
|
|
| PS5.B08.K01.070 | 50 | 8 | 34 | 70 | 48 | |
|
|
|
| PS5.B10.K01.070 | 50 | 10 | 34 | 70 | 48 | |
|
|
|
| PS5.B12.K01.070 | 50 | 12 | 36 | 70 | 48 | |
|
|
|
| PS5.B16.K01.070 | 50 | 16 | 40 | 70 | 48 | |
|
|
|
| PS5.B20.K01.070 | 50 | 20 | 44 | 70 | 48 | |
|
|
|
| PS6.B06.K01.080 | 63 | 6 | 34 | 80 | 58 | |
|
|
|
| PS6.B08.K01.080 | 63 | 8 | 34 | 80 | 58 | |
|
|
|
| PS6.B10.K01.080 | 63 | 10 | 34 | 80 | 58 | |
|
|
|
| PS6.B12.K01.080 | 63 | 12 | 36 | 80 | 58 | |
|
|
|
| PS6.B16.K01.080 | 63 | 16 | 40 | 80 | 58 | |
|
|
|
| PS6.B20.K01.080 | 63 | 20 | 44 | 80 | 58 | |
|
|
|
| PS6.B25.K01.100 | 63 | 25 | 50 | 100 | 78 | |
|
|
|
| PS6.B32.K01.100 | 63 | 32 | 56 | 100 | 78 | |
|
|
|
| PS6.B40.K01.105 | 63 | 40 | 63 | 105 | 83 | |
|
|
|
| PS8.B10.K01.098 | 80 | 10 | 34 | 98 | 68 | |
|
|
|
| PS8.B12.K01.098 | 80 | 12 | 36 | 98 | 68 | |
|
|
|
| PS8.B16.K01.098 | 80 | 16 | 40 | 98 | 68 | |
|
|
|
| PS8.B20.K01.098 | 80 | 20 | 44 | 98 | 68 | |
|
|
|
| PS8.B25.K01.098 | 80 | 25 | 50 | 98 | 68 | |
|
|
|
| PS8.B32.K01.112 | 80 | 32 | 56 | 112 | 82 | |
|
|
|
| PS8.B40.K01.112 | 80 | 40 | 63 | 112 | 82 | |
|
|
|
| PS8.B50.K01.112 | 80 | 50 | 82 | 112 | - | |
|
|
|
