Milling arbor

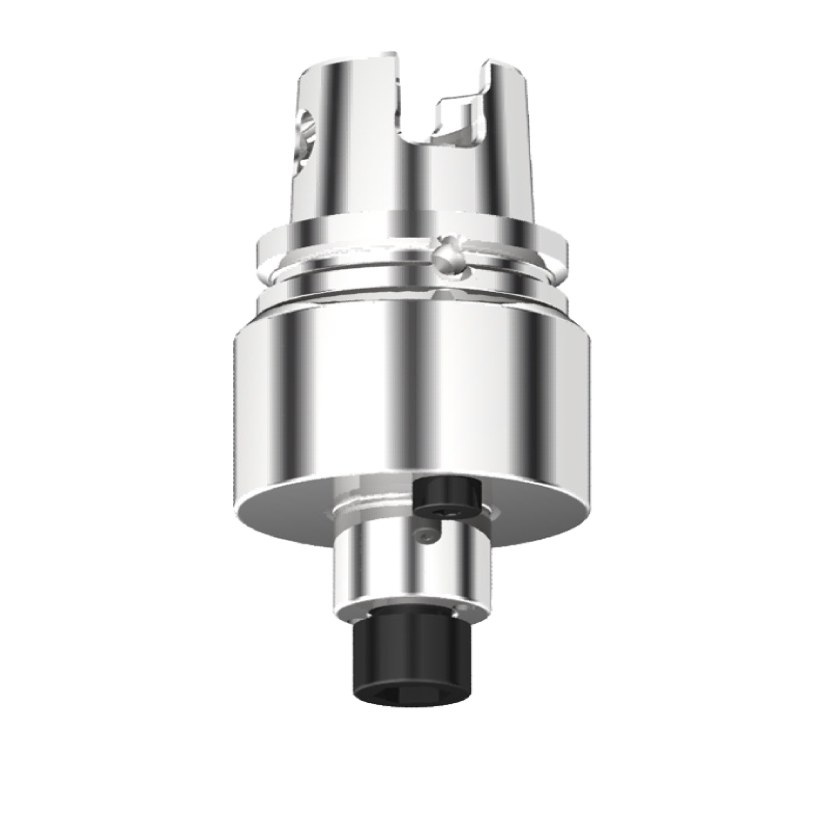

Shell Mill Adapter KM 63 XMZ- to clamp milling cutters with longitudinal and cross drive
- screwed drive bolt
| Bestell-Nr. | D1 | D | L | L1 | L2 | J | dxf | step |  |
|
| KY6.D16.K21.028 | 16 | 38 | 28 | 17 | 10 | M8 |  |
 |
 |
 |
| KY6.D16.K21.063 | 16 | 38 | 63 | 17 | 45 | M8 | |
|
|
|
| KY6.D16.K21.110 | 16 | 38 | 110 | 17 | 92 | M8 | |
|
|
|
| KY6.D22.K21.030 | 22 | 48 | 30 | 19 | 12 | M10 | |
|
|
|
| KY6.D22.K21.063 | 22 | 48 | 63 | 19 | 45 | M10 | |
|
|
 |
| KY6.D22.K21.110 | 22 | 48 | 110 | 19 | 92 | M10 | |
|
|
|
| KY6.D27.K21.032 | 27 | 58 | 32 | 21 | 14 | M12 | |
|
|
|
| KY6.D27.K21.063 | 27 | 58 | 63 | 21 | 45 | M12 | |
|
|
|
| KY6.D27.K21.110 | 27 | 58 | 110 | 21 | 92 | M12 | |
|
|
|
| KY6.D32.K21.040 | 32 | 72 | 40 | 24 | 22 | M16 | |
|
|
|
| KY6.D32.K21.063 | 32 | 72 | 63 | 24 | 45 | M16 | |
|
|
|
| KY6.D32.K21.110 | 32 | 72 | 110 | 24 | 92 | M16 | |
|
|
|
