Milling arbor

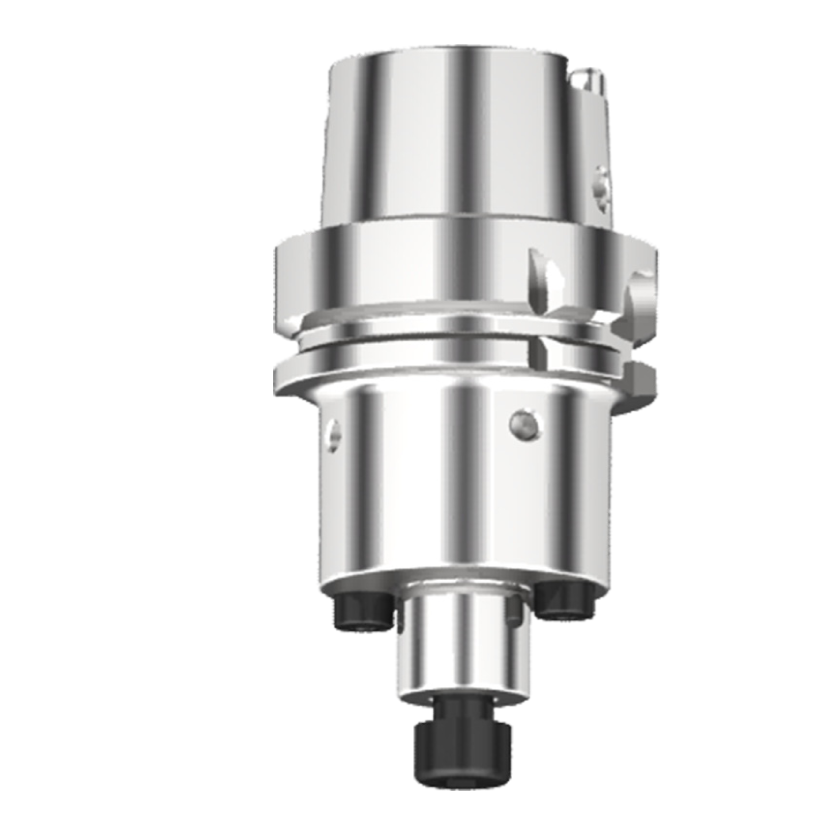

Milling arbor type S HSK-A100- to clamp milling cutters with longitudinal and cross drive
- screwed drive bolt
- fine balanced toolholders G 2.5/18000 r/min
| Bestell-Nr. | HSK A | D1 | D2 | D3 | SW | A | L | L1 | dxf | step |  |
|
| HA0.D16.K01.060 | 100 | 16 | 38 | - | 6 | 60 | 31 | 17 |  |
 |
 |
 |
| HA0.D16.K01.100 | 100 | 16 | 38 | 46 | 6 | 100 | 71 | 17 | |
|
|
|
| HA0.D16.K01.160 | 100 | 16 | 38 | 46 | 6 | 160 | 131 | 17 | |
|
|
|
| HA0.D22.K01.060 | 100 | 22 | 48 | - | 8 | 60 | 31 | 19 | |
|
|
|
| HA0.D22.K01.100 | 100 | 22 | 48 | 56 | 8 | 100 | 71 | 19 | |
|
|
|
| HA0.D22.K01.160 | 100 | 22 | 48 | 56 | 8 | 160 | 131 | 19 | |
|
|
|
| HA0.D27.K01.060 | 100 | 27 | 58 | - | 10 | 60 | 31 | 21 | |
|
|
|
| HA0.D27.K01.100 | 100 | 27 | 58 | 66 | 10 | 100 | 71 | 21 | |
|
|
|
| HA0.D27.K01.160 | 100 | 27 | 58 | 66 | 10 | 160 | 131 | 21 | |
|
|
|
| HA0.D32.K01.060 | 100 | 32 | 72 | - | 12 | 60 | 31 | 24 | |
|
|
|
| HA0.D32.K01.100 | 100 | 32 | 72 | 80 | 12 | 100 | 71 | 24 | |
|
|
|
| HA0.D32.K01.160 | 100 | 32 | 72 | 80 | 12 | 160 | 131 | 24 | |
|
|
|
| HA0.D40.K01.070 | 100 | 40 | 80 | - | 14 | 70 | 41 | 27 | |
|
|
|
| HA0.D40.K01.100 | 100 | 40 | 80 | - | 14 | 100 | 71 | 27 | |
|
|
|
| HA0.D40.K01.160 | 100 | 40 | 80 | - | 14 | 160 | 131 | 27 | |
|
|
|
