Aufnahmen

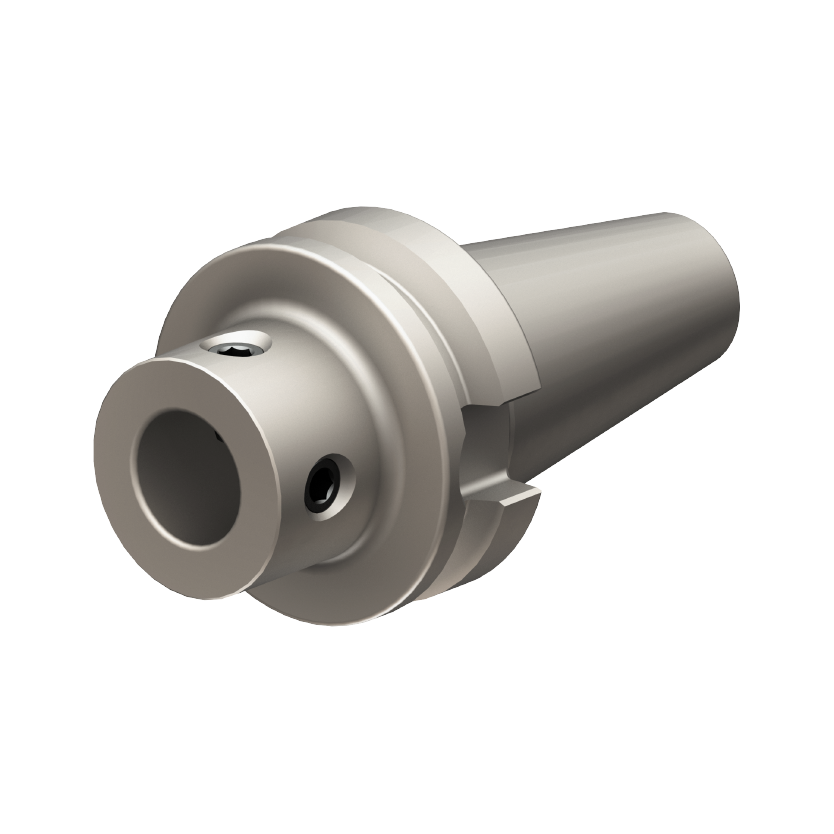

BT 30/40/50 JIS (MAS403) A/D
| Bestell-Nr. | BT | ST | D | d1 | A | L | M | dxf | step |  |
|
| 134.530.050.038 | 30 | ST5 | 50 | 28 | 38 | 16.00 | M12 |  |
 |
 | |
| 134.540.020.042 | 40 | ST1 | 20 | 11 | 42 | 15.00 | M16 | |
|
| |
| 134.540.025.042 | 40 | ST2 | 25 | 14 | 42 | 15.00 | M16 | |
|
| |
| 134.540.032.044 | 40 | ST3 | 32 | 18 | 44 | 17.00 | M16 | |
|
| |
| 134.540.039.048 | 40 | ST4 | 39 | 22 | 48 | 21.00 | M16 | |
|
| |
| 134.540.050.055 | 40 | ST5 | 50 | 28 | 55 | 28.00 | M16 | |
|
| |
| 134.540.064.046 | 40 | ST6+ | 64 | 36 | 46 | 19.00 | M16 | |
 |
|
|
| 134.550.020.063 | 50 | ST1 | 20 | 11 | 63 | 25.00 | M24 | |
|
| |
| 134.550.025.063 | 50 | ST2 | 25 | 14 | 63 | 25.00 | M24 | |
|
| |
| 134.550.032.065 | 50 | ST3 | 32 | 18 | 65 | 27.00 | M24 | |
|
|
|
| 134.550.039.069 | 50 | ST4 | 39 | 22 | 69 | 31.00 | M24 | |
|
|
|
| 134.550.050.072 | 50 | ST5 | 50 | 28 | 72 | 34.00 | M24 | |
|
|
|
| 134.550.064.072 | 50 | ST6+ | 64 | 36 | 72 | 34.00 | M24 | |
|
| |
| 134.550.090.086 | 50 | ST7+ | 90 | 46 | 86 | 48.00 | M24 | |
|
|
