Roughing tools Ø23.5-153.0

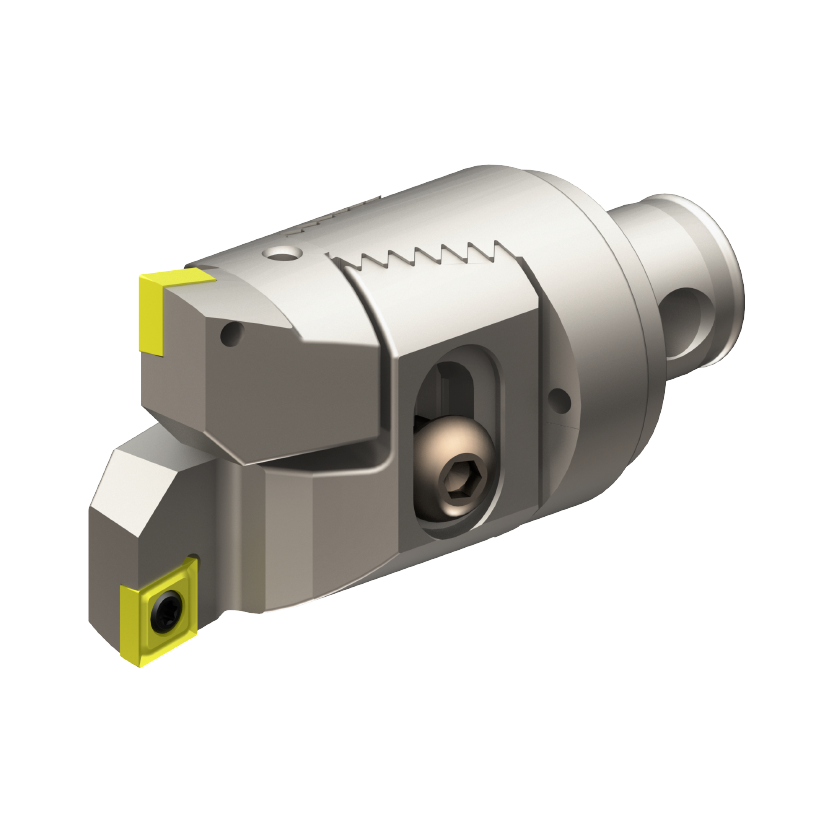

Twin cutter boring heads Ø 23.5-153- with inner coolant supply
| Bestell-Nr. | Ø A min. | Ø A max. | WH | D | D1 | L | für Wendeplattenhalter | dxf | step |  |
|
| D04.020.024.045 | 23.5 | 30.5 | WH1 | 20 | 20 | 45 | D14/D24/D34/D37 |  |
 |
 |
 |
| D04.025.031.056 | 29.5 | 40.1 | WH2 | 25 | 25 | 56 | D14/D24/D34/D37 | |
|
|
|
| D04.032.040.066 | 39.5 | 50.5 | WH3 | 32 | 32 | 66 | D14/D24/D34/D37 | |
|
|
|
| D04.040.051.075 | 49.5 | 66.5 | WH4 | 40 | 42 | 75 | D14/D24/D34/D37 | |
|
|
|
| D04.050.067.090 | 65.5 | 87.5 | WH5 | 50 | 55 | 90 | D14/D24/D34/D37 | |
|
|
|
| D04.063.087.110 | 86.5 | 115.5 | WH6 | 63 | 72 | 110 | D14/D24/D34/D37 | |
|
|
|
| D04.080.115.140 | 114.5 | 153 | WH8 | 80 | 94 | 140 | D14/D24/D34/D37 | |
|
|
 |
