Internal turning tools
Internal turningScrew clamping

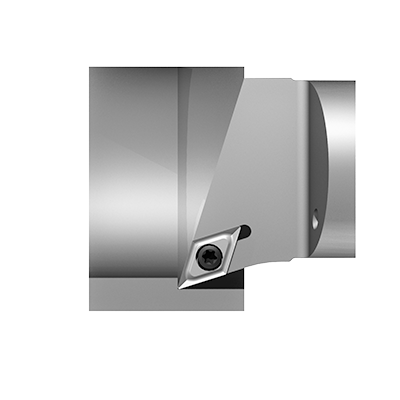

SDQC L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via screw clamping Type S
| Bestell-Nr. | HSK T | f | D | D1 min. | A | L | Wendeplatte | dxf | step |  |
|
| HA4.BDB.LLA.110 | 40 | 17 | 25 | 32 | 110 | 90 | DC . . 11 T3 . . |  |
 |
 |
 |
| HA4.BDB.LLA.140 | 40 | 17 | 25 | 32 | 140 | 120 | DC . . 11 T3 . . | |
|
|
 |
| HA4.BDB.RLA.110 | 40 | 17 | 25 | 32 | 110 | 90 | DC . . 11 T3 . . | |
|
|
|
| HA4.BDB.RLA.140 | 40 | 17 | 25 | 32 | 140 | 120 | DC . . 11 T3 . . | |
|
|
|
