Aufnahmen
HSK 32/40/50/63/100 DIN 69893
| Bestell-Nr. | HSK A | ST | D | d1 | A | L | dxf | step |  |
|
| 144.806.020.042 | 63 | ST1 | 20 | 11 | 42.00 | 16 |  |
 |
 |
 |
| 144.806.025.042 | 63 | ST2 | 25 | 14 | 42.00 | 16 | |
|
|
|
| 144.806.032.044 | 63 | ST3 | 32 | 18 | 44.00 | 18 | |
|
|
|
| 144.806.039.048 | 63 | ST4 | 39 | 22 | 48.00 | 22 | |
|
|
|
| 144.806.050.059 | 63 | ST5 | 50 | 28 | 59.00 | 33 | |
|
|
|
| 144.806.064.070 | 63 | ST6 | 64 | 36 | 70.00 | 44 | |
|
|
|
| 144.806.064.100 | 63 | ST6+ | 64 | 36 | 100.00 | 74 | |
|
|
|
| 144.810.020.055 | 100 | ST1 | 20 | 11 | 55.00 | 26 | |
|
|
|
| 144.810.025.055 | 100 | ST2 | 25 | 14 | 55.00 | 26 | |
|
|
|
| 144.810.032.057 | 100 | ST3 | 32 | 18 | 57.00 | 28 | |
|
|
|
| 144.810.039.061 | 100 | ST4 | 39 | 22 | 61.00 | 32 | |
|
|
|
| 144.810.050.072 | 100 | ST5 | 50 | 28 | 72.00 | 43 | |
|
|
|
| 144.810.064.078 | 100 | ST6 | 64 | 36 | 78.00 | 49 | |
|
|
|
| 144.810.064.108 | 100 | ST6+ | 64 | 36 | 108.00 | 79 | |
|
|
 |

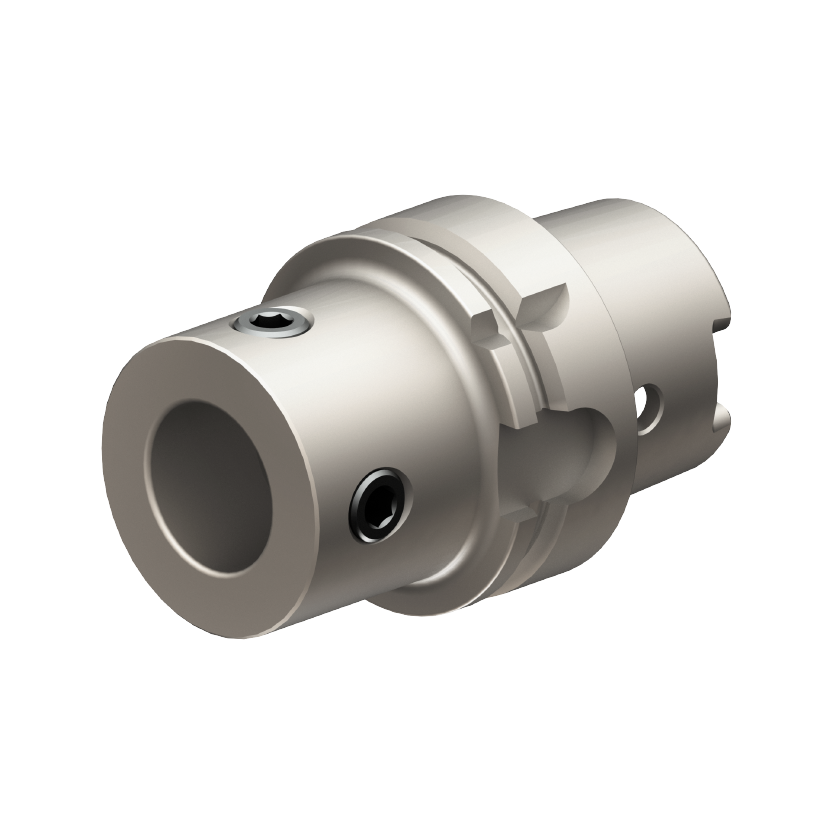

| 144.810.090.127 | 100 | ST7+ | 90 | 46 | 127.00 | 98 | |
|
|
|
