Schrumpffutter Typ L

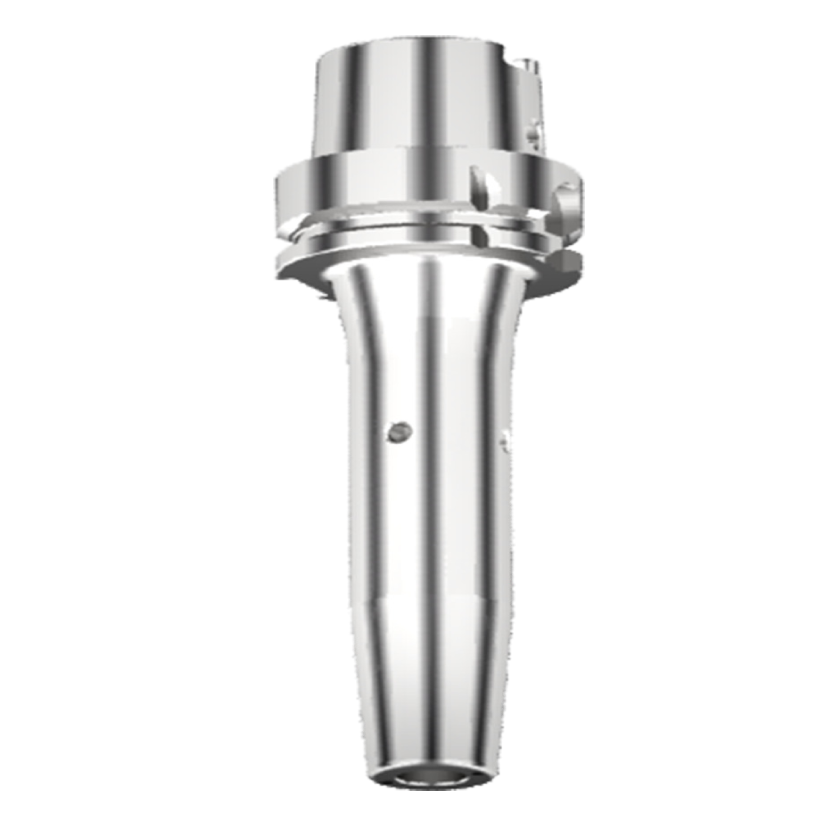

Schrumpffutter Typ L HSK-A63- Standardausführung für hohe Klemmkraft
- für HM- und HSS-Werkzeuge
- Schafttoleranz h6
- Rundlaufgenauigkeit 3 μm
- Aufnahmen feingewuchtet G 2.5/25000 U/min
- axiale Längenverstellung
| Bestell-Nr. | HSK A | D1 | D2 | D3 | D4 | A | L | L1 | dxf | step |  |
|
| HA6.S06.K01.080 | 63 | 6 | 21 | 26 | - | 80 | 54 | 36 |  |
 |
 |
 |
| HA6.S06.K01.130 | 63 | 6 | 21 | 26 | 34 | 130 | 104 | 36 | |
|
 | |
| HA6.S08.K01.080 | 63 | 8 | 21 | 26 | - | 80 | 54 | 36 | |
|
|
|
| HA6.S08.K01.130 | 63 | 8 | 21 | 26 | 34 | 130 | 104 | 36 | |
|
| |
| HA6.S10.K01.085 | 63 | 10 | 24 | 30 | - | 85 | 59 | 41 | |
|
|
|
| HA6.S10.K01.130 | 63 | 10 | 24 | 30 | 39 | 130 | 104 | 41 | |
|
| |
| HA6.S12.K01.090 | 63 | 12 | 24 | 30 | - | 90 | 64 | 46 | |
|
|
|
| HA6.S12.K01.130 | 63 | 12 | 24 | 30 | 39 | 130 | 104 | 46 | |
|
| |
| HA6.S14.K01.090 | 63 | 14 | 27 | 34 | - | 90 | 64 | 46 | |
|
|
|
| HA6.S14.K01.130 | 63 | 14 | 27 | 34 | 41 | 130 | 104 | 46 | |
|
| |
| HA6.S16.K01.095 | 63 | 16 | 27 | 34 | - | 95 | 69 | 49 | |
|
|
|
| HA6.S16.K01.130 | 63 | 16 | 27 | 34 | 41 | 130 | 104 | 49 | |
|
| |
| HA6.S18.K01.095 | 63 | 18 | 33 | 41 | - | 95 | 69 | 49 | |
|
|
|
| HA6.S18.K01.130 | 63 | 18 | 33 | 41 | 48 | 130 | 104 | 49 | |
|
| |
| HA6.S20.K01.100 | 63 | 20 | 33 | 41 | - | 100 | 74 | 51 | |
|
|
|
| HA6.S20.K01.130 | 63 | 20 | 33 | 41 | 48 | 130 | 104 | 51 | |
|
| |
| HA6.S25.K01.115 | 63 | 25 | 44 | 52 | - | 115 | 89 | 57 | |
|
|
|
| HA6.S32.K01.120 | 63 | 32 | 44 | 52 | - | 120 | 94 | 61 | |
|
|
|
