Roughing tools Ø23.5-153.0

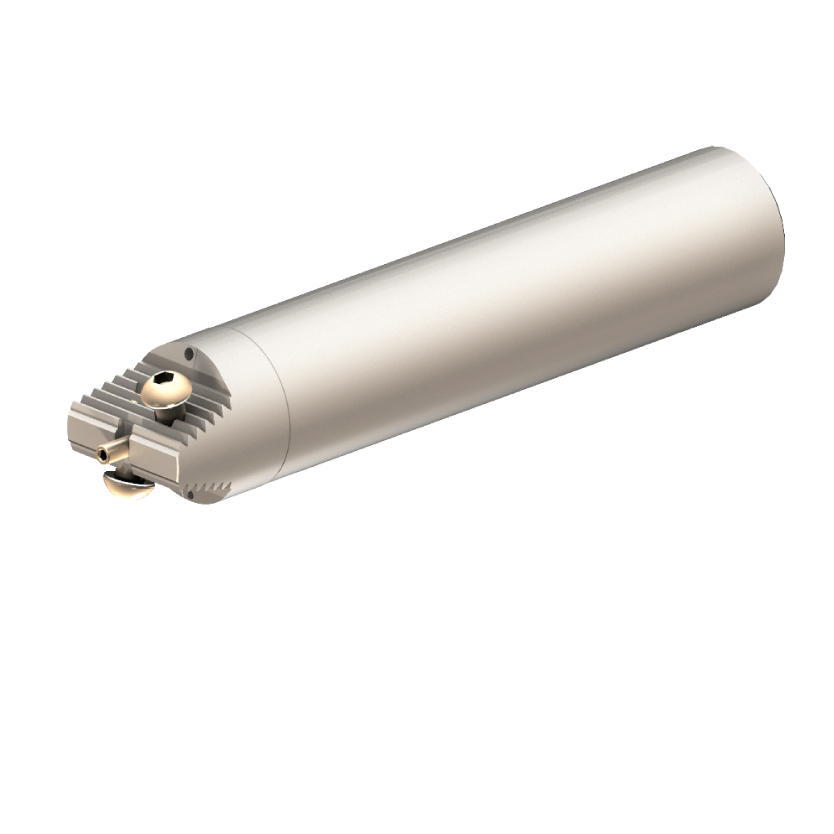

RBHT-SS Twin cutter Ø 23.5-153.1 (Inch shank)- with inner coolant supply
| Order Nr. | D | BR1 min | BR1 max | L2 | L1 | D2 | Insert holder | dxf | step |  |
|
| W19.Z20.024.150 | 19.1 (0.75") | 23.5 | 30.5 | 42 | 150 | 20 | U14.../U24.../U34.../U37... |  |
 |
 |
 |
| W26.Z25.030.170 | 25.4 (1.00") | 29.5 | 40.1 | 47 | 170 | 25 | U14.../U24.../U34.../U37... | |
|
|
|
| W26.Z42.050.090 | 25.4 (1.00") | 39.5 | 50.5 | 53 | 190 | 32 | U14.../U24.../U34.../U37... | |
|
|
 |
| W31.Z32.040.190 | 31.8 (1.25") | 49.5 | 66.5 | 90 | 146 | 42 | U14.../U24.../U34.../U37... | |
|
|
|
| W31.Z55.066.100 | 31.8 (1.25") | 65.5 | 87.5 | 100 | 161 | 55 | U14.../U24.../U34.../U37... | |
|
|
|
| W38.Z72.087.120 | 38.1 (1.5") | 86.5 | 115.5 | 120 | 192 | 72 | U14.../U24.../U34.../U37... | |
|
|
|
