Finishing tools analog / digital Ø23.9-203.1

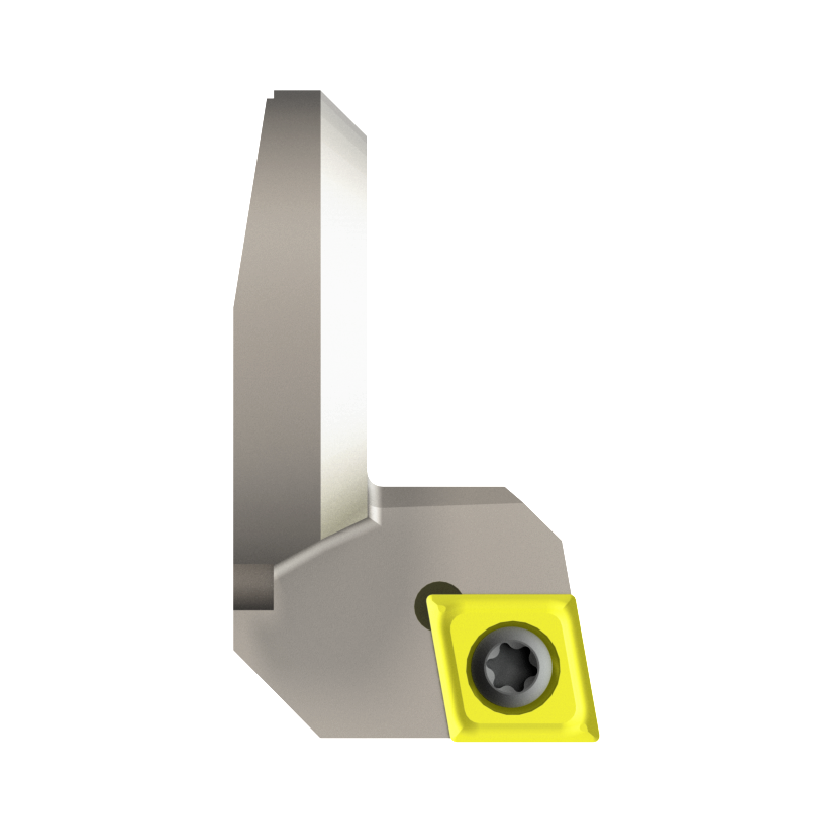

Insert holder 90°

for use in fine boring heads from serie 300, 304 and 590

Bestell-Nr.	Ø A min.	Ø A max.	D	Wendeplatte	Feinbohrkopf	dxf	step	pdf
314.011.024.006	23.9	31.1	11	CC . . 06 02 . .	304.020.024.035
314.011.030.006	29.9	37.1	11	CC . . 06 02 . .	304.020.024.035
314.013.031.006	30.9	40.1	13	CC . . 06 02 . .	304.025.031.040
314.013.038.006	37.9	47.1	13	CC . . 06 02 . .	304.025.031.040
314.017.040.006	39.9	51.1	17	CC . . 06 02 . .	304.032.040.047
314.017.048.006	47.9	59.1	17	CC . . 06 02 . .	304.032.040.047
314.022.051.006	50.9	67.1	22	CC . . 06 02 . .	304.039.051.057
314.022.065.006	64.9	81.1	22	CC . . 06 02 . .	304.039.051.057
314.030.067.006	66.9	87.1	30	CC . . 06 02 . .	304.050.067.080
314.030.067.009	66.9	87.1	30	CC . . 09 T3 . .	304.050.067.080
314.030.085.006	84.9	105.1	30	CC . . 06 02 . .	304.050.067.080
314.030.085.009	84.9	105.1	30	CC . . 09 T3 . .	304.050.067.080
315.011.024.006	23.9	31.1	11	CC . . 06 02 . .	304.020.024.035
315.013.031.006	30.9	40.1	13	CC . . 06 02 . .	304.025.031.040
315.017.040.006	39.9	51.1	17	CC . . 06 02 . .	304.032.040.047
315.022.051.006	50.9	67.1	22	CC . . 06 02 . .	304.039.051.057
315.030.067.009	66.9	87.1	30	CC . . 09 T3 . .	304.050.067.080
315.030.067.009	86.9	116.1	30	CC . . 09 T3 . .	304.064.087.100
315.030.067.009	115.9	153.1	30	CC . . 09 T3 . .	304.090.116.130
