External turning tools
External turningLever lock clamping
PDNN N
- Clamping system: The insert is tightened via toggle lever Type P
- Cooling system: Turning tools with toggle lever-clamping feature an adusted coolant nozzle.
| Bestell-Nr. | PSC | A | Wendeplatte | dxf | step |  |
||||
| PS6.PDF.NNA.100-HP | 63 | 100 | DN . . 15 06 . .* |  |
 |
 |
 | |||

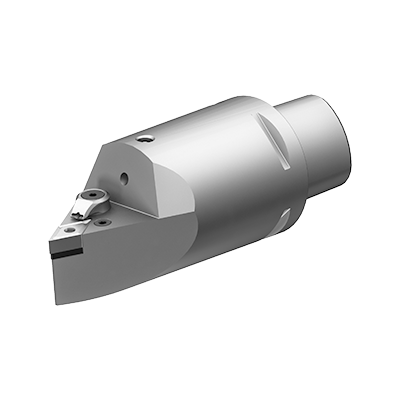

| PS6.PDF.NNA.130-HP | 63 | 130 | DN . . 15 06 . .* | |
|
|
|
