External turning tools
External turningScrew clamping
SVUC L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via screw clamping Type S
- Cooling system: Turning tools for positive inserts feature an adjusted coolant nozzle
| Bestell-Nr. | HSK T | f | D1 min. | A | rechts/links | Wendeplatte | dxf | step |  |
|
| HA4.KVB.LUA.055-HP | 40 | 27 | 50 | 55 | L | VC . . 16 04 . . |  |
 |
 |
 |

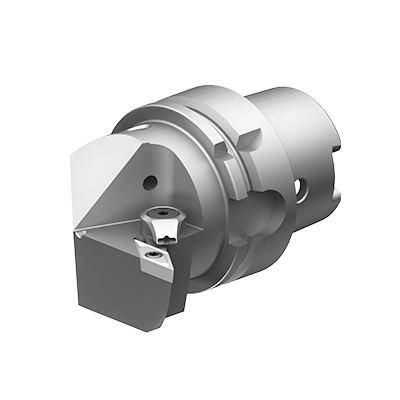

| HA4.KVB.RUA.055 | 40 | 27 | 50 | 55 | R | VC . . 16 04 . . | |
|
|
|
