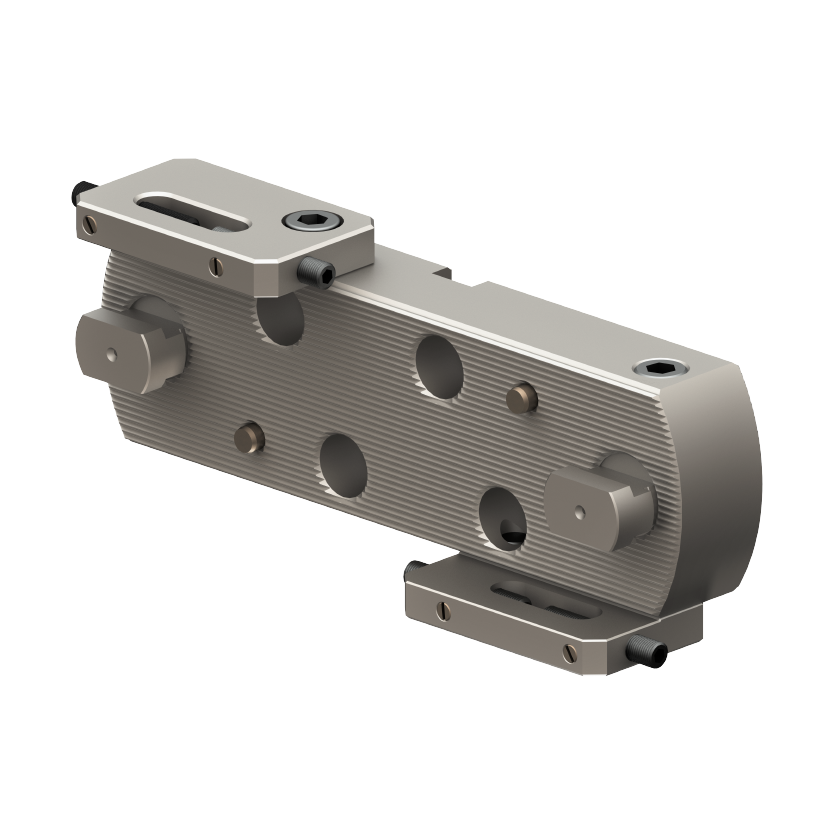

Bridge tools Ø150.0-655.0
Extension bridges Ø150-655- for use on bridge adapters from serie 504 and 554
| Bestell-Nr. | D | L | Ausdrehdurchmesser | dxf | step |  |
|
| 560.130.130.030 | 130 | 30 | 150 – 205 |  |
 |
 |
 |
| 560.130.180.030 | 180 | 30 | 200 – 255 | |
|
|
|
| 560.130.230.035 | 230 | 35 | 250 – 305 | |
|
|
 |
| 560.130.280.035 | 280 | 35 | 300 – 355 | |
|
|
|
| 560.130.330.040 | 330 | 40 | 350 – 405 | |
|
|
|
| 560.130.380.040 | 380 | 40 | 400 – 455 | |
|
|
|
| 560.130.430.040 | 430 | 40 | 450 – 505 | |
|
|
|
| 560.130.480.040 | 480 | 40 | 500 – 555 | |
|
|
|
| 560.130.530.050 | 530 | 50 | 550 – 605 | |
|
|
|
| 560.130.580.050 | 580 | 50 | 600 – 655 | |
|
|
|
