Damped rough boring solutions Ø14.7-51.1
Daped solid carbide shanks Ø 23.9 - 51.1- productivity improvement: thanks to reduced vibrations, the cutting conditions can be improved remarkable
- better surface quality
- improved process stability
- better chip evacuation
- reduced cost per part
- for boring length up to 12xD
| Order number | D | D1 | L max | L1 | L2 | L3 | for screwable head | dxf | step |  |
|
| 276.025.170 | 25 | 23 | 146 | 211 | 170 | 105 | 28x/140.020.041 |  |
 |
 |
 |
| 276.025.220 | 25 | 23 | 261 | 220 | 220 | 155 | 28x/140.020.041 | |
|
|
|
| 276.025.265 | 25 | 23 | 241 | 306 | 265 | 200 | 28x/140.020.041 | |
|
|
|
| 276.032.217 | 32 | 32 | 203 | 268 | 217 | 152 | 28x/140.032.051 | |
|
|
|
| 276.032.217 | 32 | 32 | 343 | 408 | 357 | 292 | 28x/140.032.051 | |
|
|
|
| 276.032.220 | 32 | 29 | 200 | 265 | 220 | 155 | 28x/140.025.045 | |
|
|
|
| 276.032.260 | 32 | 29 | 240 | 305 | 260 | 195 | 28x/140.025.045 | |
|
|
|
| 276.032.287 | 32 | 32 | 273 | 338 | 287 | 222 | 28x/140.032.051 | |
|
|
|

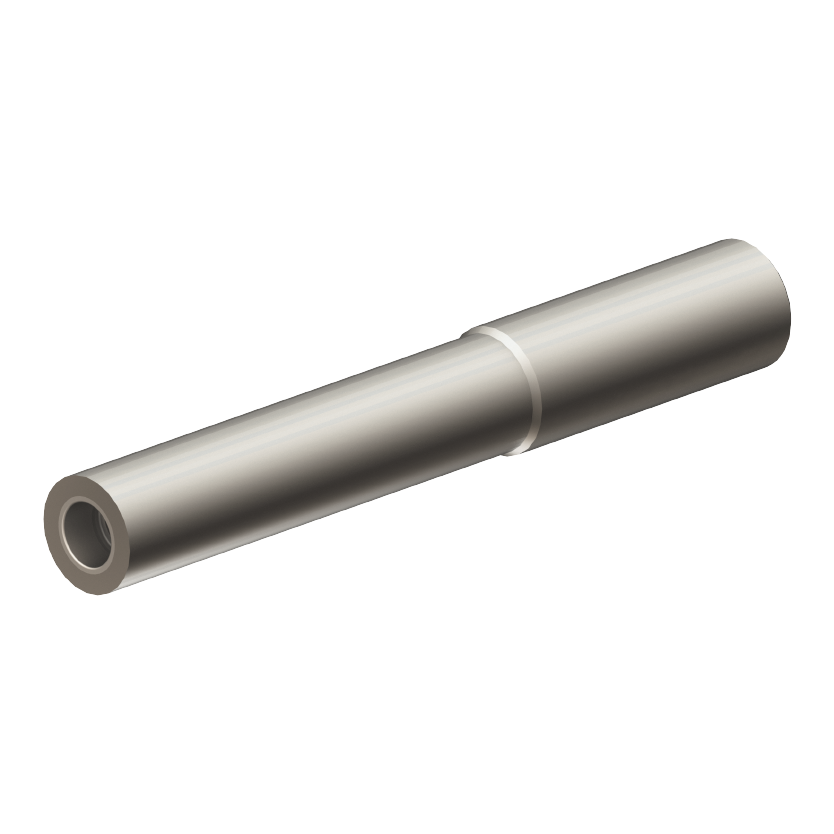

| 276.032.310 | 32 | 29 | 290 | 355 | 310 | 245 | 28x/140.025.045 | |
|
|
|
