Damped rough boring solutions Ø14.7-51.1

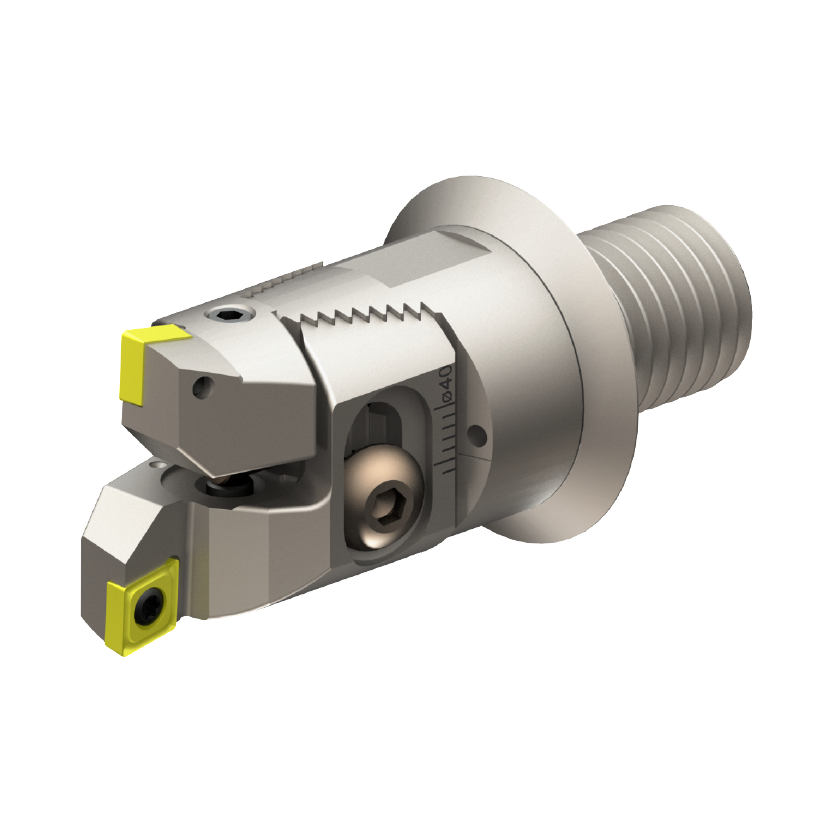

Twin cutter heads with thread connection Ø 23.9 - 51.1- with inner coolant supply
| Order number | Ø A min. | Ø A max. | d | L | Insertholder | dxf | step |  |
|
| 140.020.041 | 23.5 | 31.1 | 20 | 41 | 162/182/166/167.200.006 |  |
 |
 |
 |
| 140.025.045 | 30.5 | 40.1 | 25 | 45 | 162/182/166/167.250.006 | |
|
|
|
| 140.032.051 | 39.5 | 51.1 | 32 | 51 | 162/182/166/167.320.006 | |
|
|
 |
