Damped fine boring solutions Ø14.7-51.1

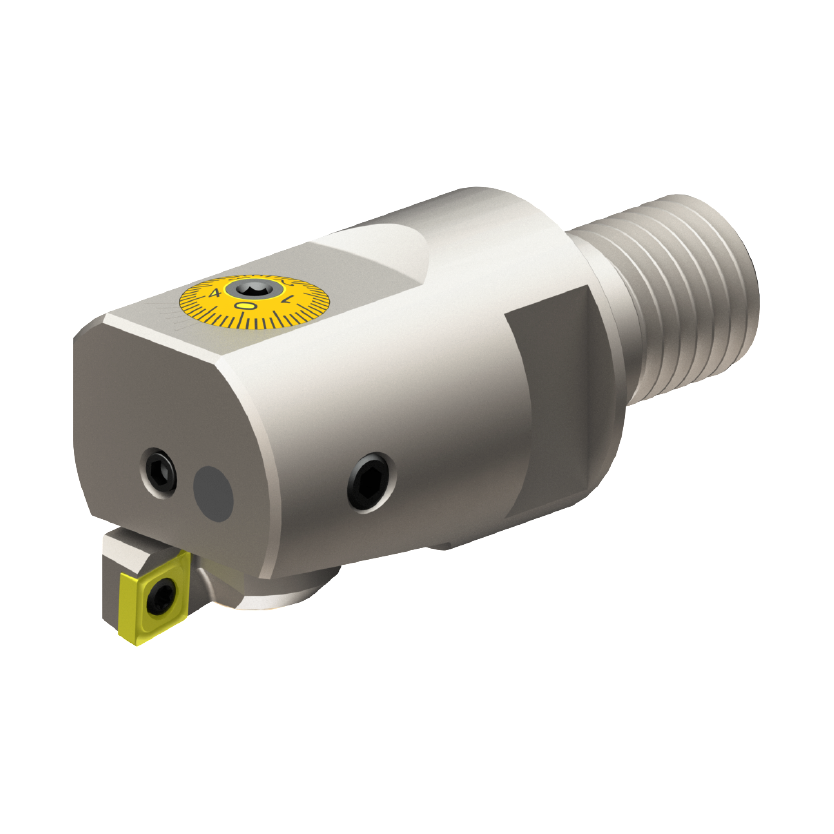

High-Speed fine boring heads Ø 14.7-24.1- diametrical adjustment nearly with-out reversal backlash
- 0.01mm diametrical adjustment
- with inner coolant supply
| Bestell-Nr. | HS-Schaft | Ø A min. | Ø A max. | D | L | für Wendeplatte | dxf | step |  |
|
| 300.014.015.040 | 284..014.006.110 | 14.7 | 17.1 | 14 | 150 | 302.005.017.002 |  |
 |
 |
 |
| 300.016.017.040 | 284.016.010.120 | 16.7 | 20.1 | 16 | 160 | 302.005.017.002 | |
|
|
|
| 300.019.020.040 | 284.018.010.140 | 19.7 | 24.1 | 18 | 180 | 302.005.017.002 | |
|
 | |
| 300.020.024.080 | 284.020.010.170 | 23.9 | 31.1 | 20 | 250 | 314.011.024.006 | |
|
|
|
| 300.025.031.100 | 284.025.012.206 | 30.9 | 40.1 | 25 | 306 | 314.013.031.006 | |
|
|
|
| 300.032.040.128 | 284.032.016.252 | 39.9 | 51.1 | 32 | 380 | 314.017.040.006 | |
|
|
|
