Damped fine boring solutions Ø14.7-51.1

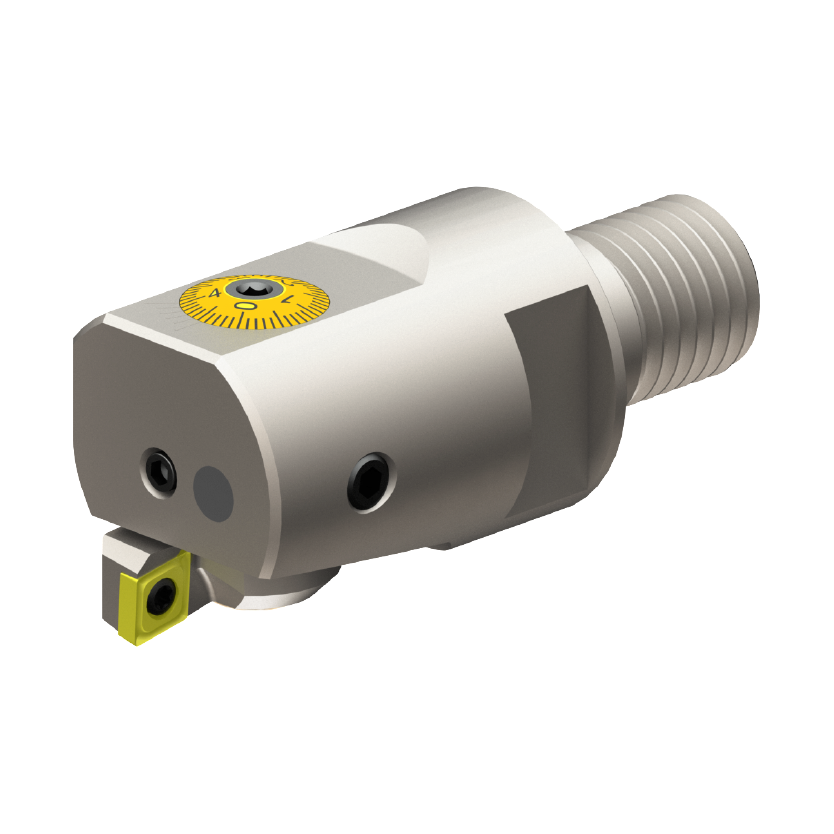

Fine boring heads with thread connection (analog / digital) Ø 23.9 - 51.1- Type 300 (analog) 0.002mm diametrical adjustment by nonius
- Type 301 (digital) 0.001 accuracy in diameter
- direct measurement system (no backlash)
- with inner coolant supply
| Order number | Ø A min. | Ø A max. | d | L | Insertholder | dxf | step |  |
|
| 300.020.024.041 | 23.9 | 31.1 | 20 | 41 | 314.011.024.006 |  |
 |
 |
 |
| 300.025.031.045 | 23.9 | 31.1 | 20 | 41 | 314.013.031.006 | |
|
|
 |
| 300.032.040.051 | 30.9 | 40.1 | 25 | 45 | 314.017.040.006 | |
|
|
|
| 301.020.024.041 | 30.9 | 40.1 | 25 | 45 | 314.011.024.006 | |
|
|
|
| 301.025.031.045 | 39.9 | 51.1 | 32 | 51 | 314.013.031.006 | |
|
| |
| 301.032.040.051 | 39.9 | 51.1 | 32 | 51 | 314.017.040.006 | |
|
|
|
