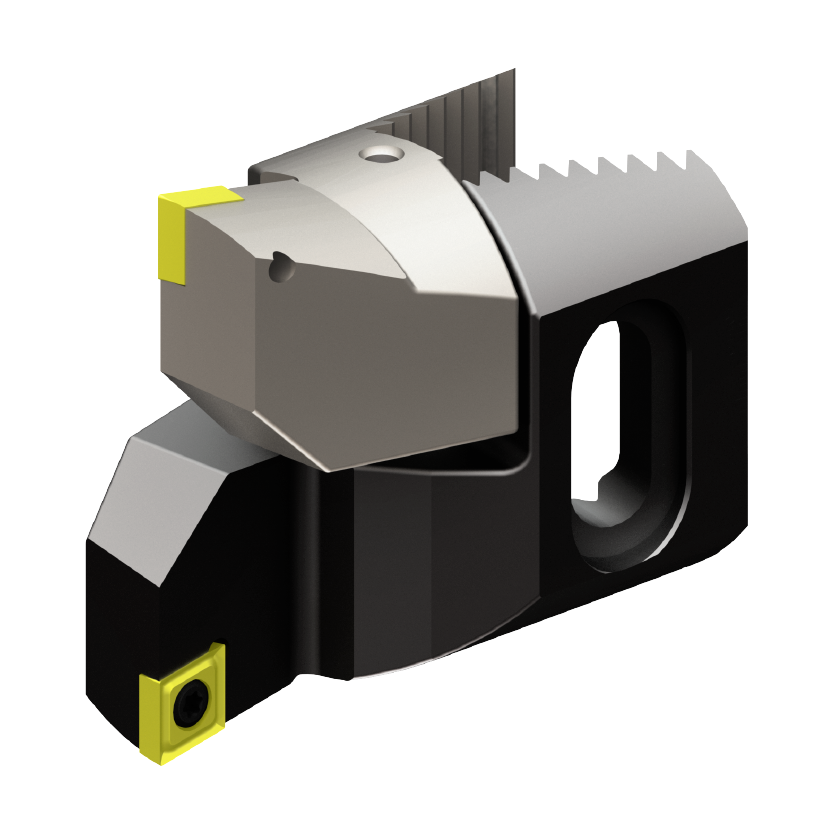

Roughing tools Ø23.5-153.0

Insert holders 90° axial 0.4mm staggered

  • for use in twin cutter boring heads from serie 404
  • for divided cut







Bestell-Nr.Ø A min.Ø A max.WendeplatteZweischneiderkopf dxf step pdf Available from stock
437.020.024.006 23.5 30.5 CC . .06 02 . . 404.020.024.035 download DXF         on stock
437.025.031.006 29.5 40.1 CC . .06 02 . . 404.025.031.040 download DXF         on stock
437.032.040.009 39.5 50.5 CC . .09 T3 . . 404.032.040.047 download DXF         on stock
437.039.051.009 49.5 66.5 CC . .09 T3 . . 404.039.051.057 download DXF         on stock
437.050.067.012 65.5 87.5 CC . .12 04 . . 404.050.067.080 download DXF   download STEP   download ddf   on stock
437.064.087.012 86.5 115.5 CC . .12 04 . . 404.064.087.100 download DXF         delivered with delivery time
437.090.115.012 114.5 153 CC . .12 04 . . 404.090.115.130 download DXF   download STEP   download ddf   on stock
