Roughing tools Ø23.5-153.0

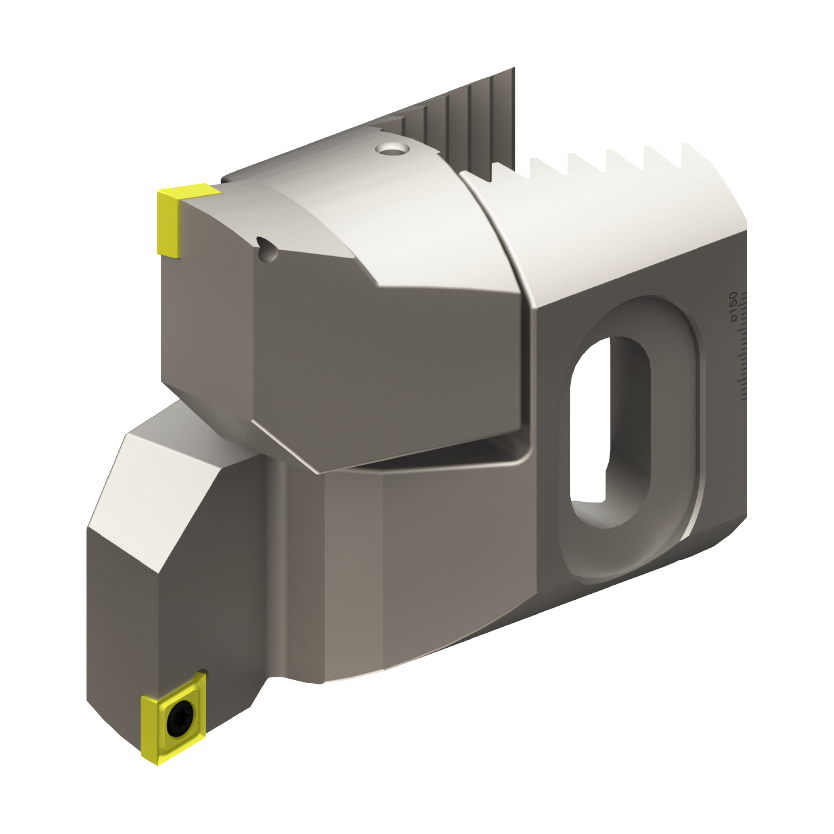

Synchronised insert holders 90°- for use in twin cutter boring heads from serie 404
- with synchro spindle both insert holders can be adjusted synchronously and symmetrically
| Bestell-Nr. | Ø A min. | Ø A max. | Wendeplatte | Zweischneiderkopf | dxf | step |  |
|
| 434.020.024.006 | 23.5 | 30.5 | CC . .06 02 . . | 404.020.024.035 |  |
 | ||
| 434.025.031.006 | 29.5 | 40.1 | CC . .06 02 . . | 404.025.031.040 | |
| ||
| 434.032.040.009 | 39.5 | 50.5 | CC . .09 T3 . . | 404.032.040.047 | |
| ||
| 434.039.051.009 | 49.5 | 66.5 | CC . .09 T3 . . | 404.039.051.057 | |
 | ||
| 434.050.067.012 | 65.5 | 87.5 | CC . .12 04 . . | 404.050.067.080 | |
 |
 |
|
| 434.064.087.012 | 86.5 | 115.5 | CC . .12 04 . . | 404.064.087.100 | |
| ||
| 434.090.115.012 | 114.5 | 153 | CC . .12 04 . . | 404.090.115.130 | |
|
|
|
