Roughing tools Ø23.5-153.0

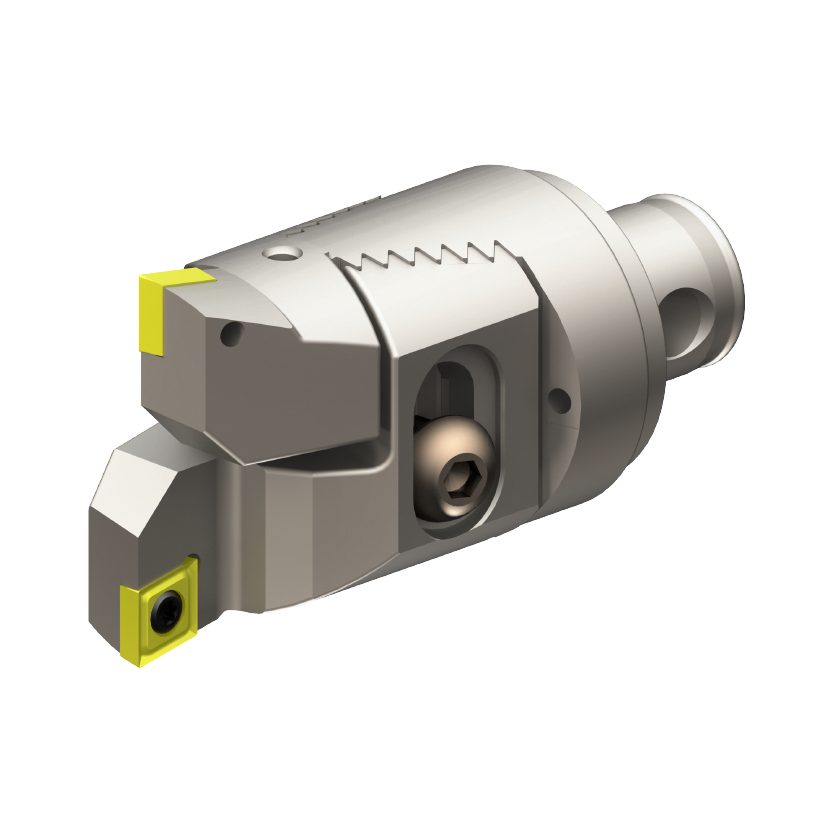

Twin cutter boring heads Ø 23.5-153- with inner coolant supply
| Bestell-Nr. | Ø A min. | Ø A max. | ST | D | D1 | L | für Wendeplattenhalter | dxf | step |  |
|
| 404.020.024.035 | 23.5 | 30.5 | ST1 | 20 | 20 | 35.5 | 414/424/434/437 |  |
 |
 | |
| 404.025.031.040 | 29.5 | 40.1 | ST2 | 25 | 25 | 40 | 414/424/434/437 | |
 |
|
|
| 404.032.040.047 | 39.5 | 50.5 | ST3 | 32 | 32 | 47 | 414/424/434/437 | |
|
|
|
| 404.039.051.057 | 49.5 | 66.5 | ST4 | 39 | 42 | 57 | 414/424/434/437 | |
|
| |
| 404.050.067.080 | 65.5 | 87.5 | ST5 | 50 | 55 | 80 | 414/424/434/437 | |
|
| |
| 404.064.087.100 | 86.5 | 115.5 | ST6+ | 64 | 72 | 100 | 414/424/434/437 | |
|
| |
| 404.090.115.130 | 114.5 | 153 | ST7+ | 90 | 94 | 130 | 414/424/434/437 | |
|
|
