Roughing tools Ø23.5-153.0

RBHT-MB Insert holders 70°

for use in twin cutter boring heads from serie RBHT

Order Nr.	A min	A max	Insert	dxf	step	pdf
U24.020.024.006	23.5	30.5	CC . .06 02 . .
U24.025.031.006	29.5	40.1	CC . .06 02 . .
U24.032.040.009	39.5	50.5	CC . .09 T3 . .
U24.039.051.009	49.5	66.5	CC . .09 T3 . .
U24.050.067.012	65.5	87.5	CC . .12 04 . .
U24.050.067.112	65.5	87.5	CN . .12 04 . .
U24.064.087.012	86.5	115.5	CC . .12 04 . .
U24.064.087.116	86.5	115.5	CN . .16 06 . .

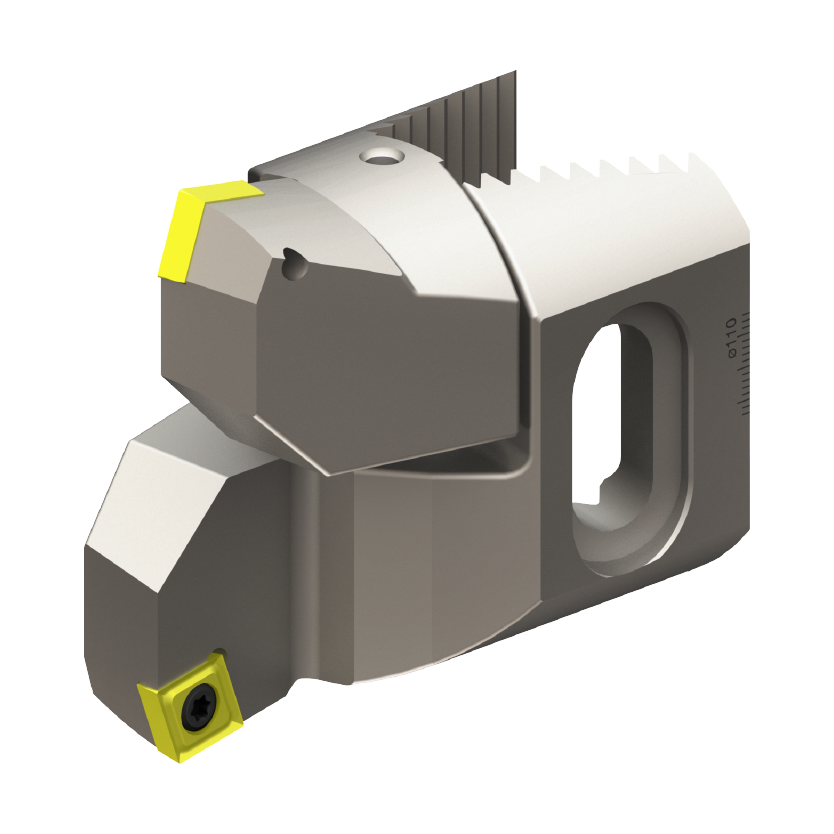

U24.090.115.116	114.5	153.0	CN . .16 06 . .
