Roughing tools Ø23.5-153.0

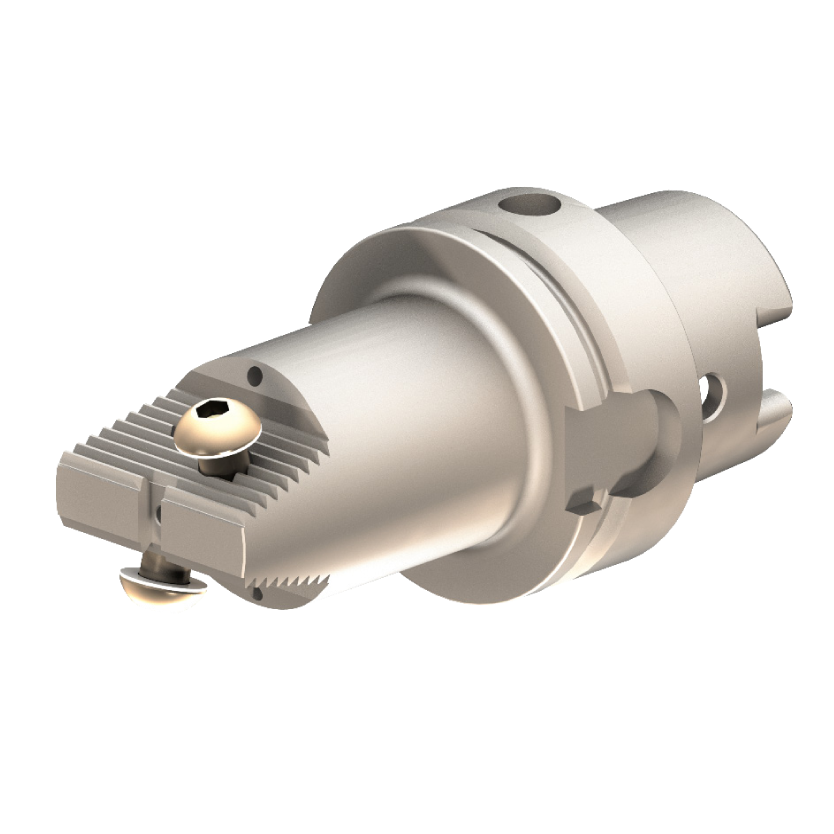

RBHT-HSK Twin cutter Ø 23.5-115.1- with inner coolant supply
| Order Nr. | CSMS | BR1 min | BR1 max | L1 | D1 | D2 | Insert holder | dxf | step |  |
|
| HA6.Z20.024.090 | HSK63A | 23.5 | 30.5 | 90 | 64 | 20 | U14.../U24.../U34.../U37... |  |
 |
 |
 |
| HA6.Z25.030.105 | HSK63A | 29.5 | 40.1 | 105 | 79 | 25 | U14.../U24.../U34.../U37... | |
|
|
|
| HA6.Z32.040.110 | HSK63A | 39.5 | 50.5 | 110 | 84 | 32 | U14.../U24.../U34.../U37... | |
|
|
|
| HA6.Z42.050.120 | HSK63A | 49.5 | 66.5 | 120 | 94 | 42 | U14.../U24.../U34.../U37... | |
|
|
|
| HA6.Z55.066.125 | HSK63A | 65.5 | 87.5 | 125 | 125 | 55 | U14.../U24.../U34.../U37... | |
|
|
|
| HA6.Z72.087.145 | HSK63A | 86.5 | 115.5 | 145 | 145 | 72 | U14.../U24.../U34.../U37... | |
|
|
|
