Roughing tools Ø23.5-153.0

RBHT-KM Twin cutter Ø 23.5-153.1

  • with inner coolant supply







Order Nr.CSMSBR1 minBR1 maxL1D1D2Insert holder dxf step pdf Available from stock
KM3.Z20.024.090 KM32 23.5 30.5 90 76 20 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock
KM3.Z25.030.100 KM32 29.5 40.1 100 86 25 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock
KM4.Z32.040.090 KM40 39.5 50.5 90 74 32 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock
KM5.Z42.050.090 KM50 49.5 66.5 90 70 42 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock
KM5.Z55.066.100 KM50 65.5 87.5 100 100 55 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock
KM5.Z72.087.120 KM50 86.5 115.5 120 120 72 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock
KM6.Z72.087.120 KM63UT 86.5 115.5 120 120 72 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   on stock

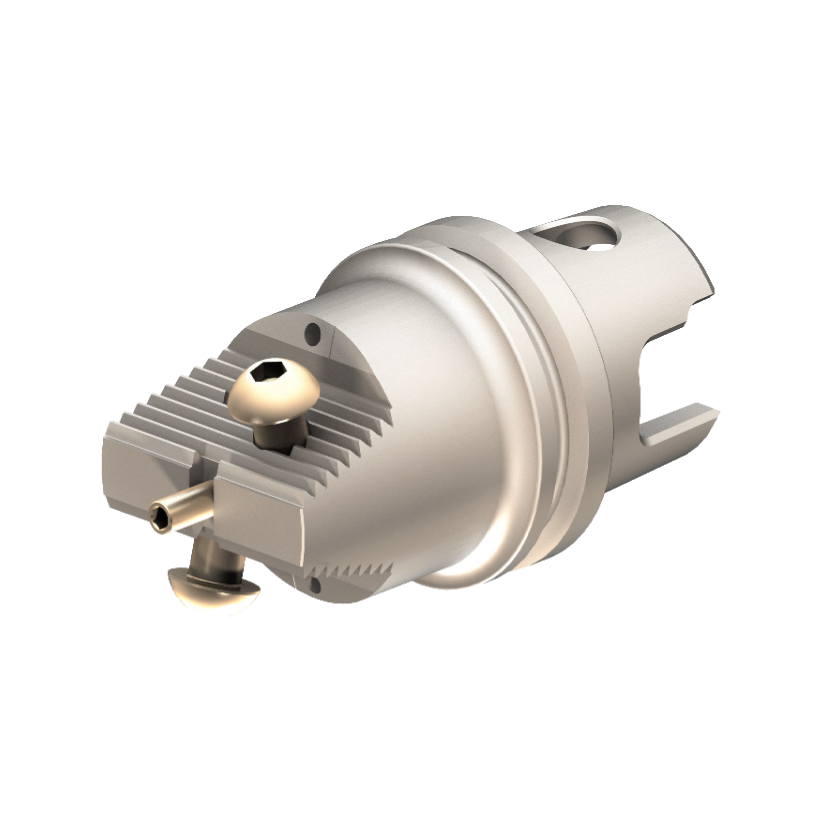

KM6.Z94.115.150 KM63UT 114.5 153 150 150 94 U14.../U24.../U34.../U37... download DXF   download STEP   download ddf   delivered with delivery time
