Finishing tools analog / digital Ø23.9-203.1

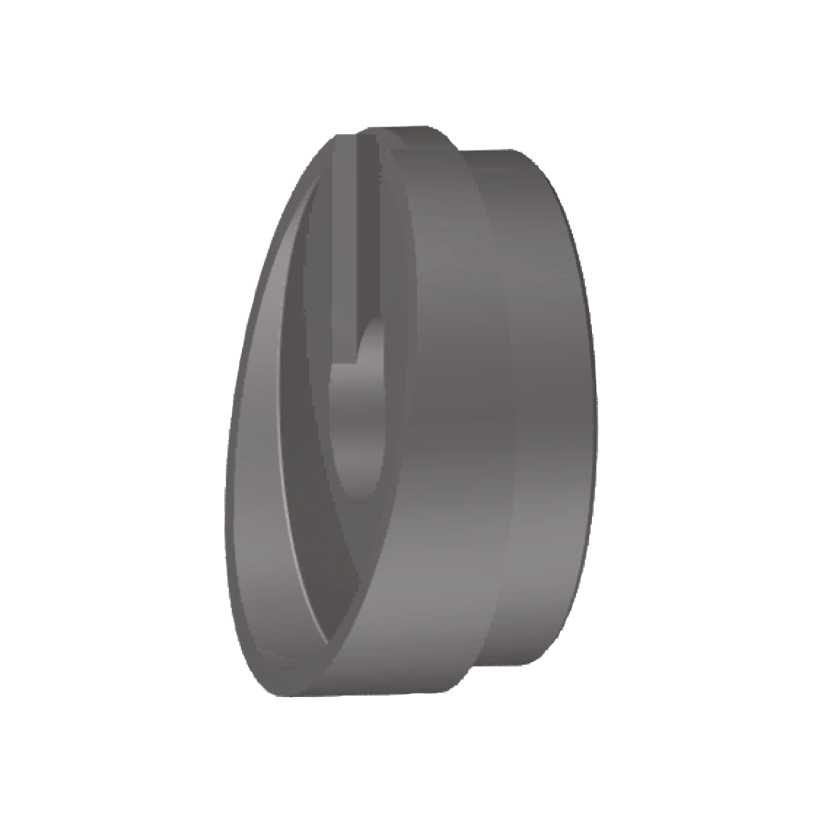

Reversal adapter for reverse machining- for use in fine boring heads from serie 300/304
- the insert holders from serie 314 will be fitted backwards on the adapter
| Bestell-Nr. | Ø A min. | Ø A max. | D | L | X | Feinbohrkopf | dxf | step |  |
|
| 324.011.065.008 | 37 | 44 | 20 | 8.5 | 6.5 | 304.020.024.035 |  |
 |
 |
 |
| 324.011.080.008 | 40 | 51 | 20 | 8.5 | 8 | 304.020.024.035 | |
|
|
|
| 324.013.065.007 | 44 | 53 | 25 | 7.6 | 6.5 | 304.025.031.040 | |
|
|
|
| 324.013.100.007 | 51 | 60 | 25 | 7.6 | 10 | 304.025.031.040 | |
|
|
|
| 324.017.065.013 | 53 | 64 | 32 | 13.3 | 6.5 | 304.032.040.047 | |
|
|
|
| 324.017.100.013 | 60 | 71 | 32 | 13.3 | 10 | 304.032.040.047 | |
|
|
|
| 324.022.065.016 | 64 | 80 | 42 | 16.2 | 6.5 | 304.039.051.057 | |
|
|
|
| 324.022.120.016 | 75 | 91 | 42 | 16.2 | 12 | 304.039.051.057 | |
|
|
 |
| 324.030.100.027 | 87 | 107 | 55 | 27 | 10 | 304.050.067.080 | |
|
|
|
| 324.030.100.027 | 107 | 136 | 72 | 47 | 10 | 304.064.087.100 | |
|
|
|
| 324.030.100.027 | 136 | 173 | 90 | 77 | 10 | 304.090.116.130 | |
|
|
|
