Finishing tools Multi-Head Ø3.0-320.0

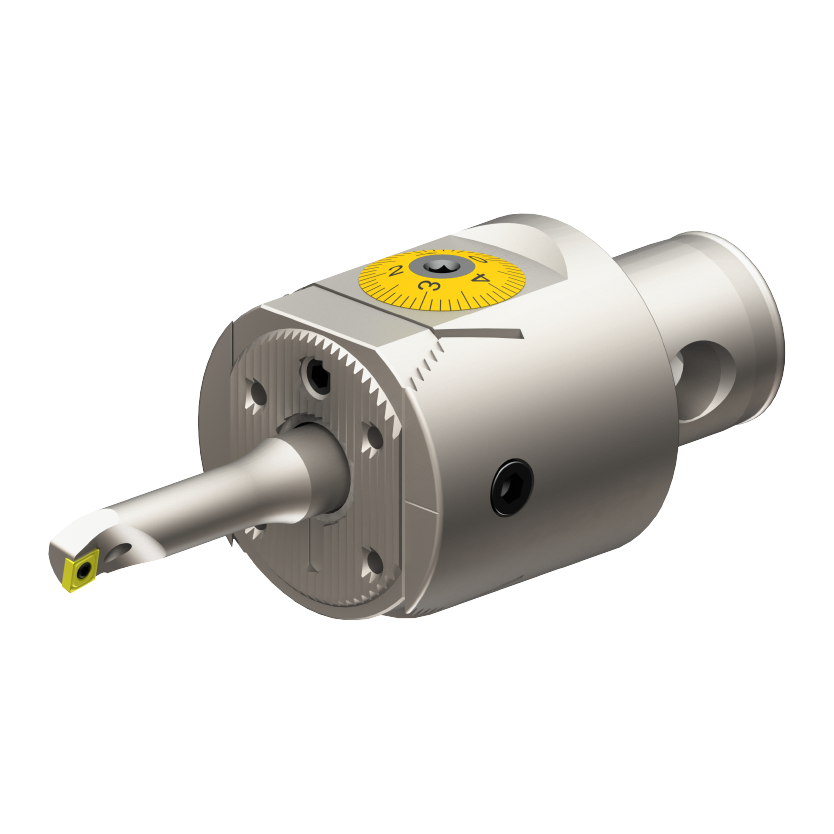

Fine boring head MULTI Ø3.0-320.0- for boring bars with a shank diameter of 16mm and fine boring bridges
- diametrical adjustment with maximal reduced reversal backlash
- 0.01mm diametrical adjustment resp. 0.002mm by nonius
- with inner coolant supply
- boring bars go through head (L1)
| Bestell-Nr. | Schnittstelle | System Ø D | D1 | Ø A min.-max. | Ø A1 min.- max. | L | L1 | L2 | dxf | step |  |
|
| 261.063.095 | DIN 69893 HSK 63 A | - | 63 | 3 - 88.1 | 86 - 320 | 96 | 72.5 | 125 |  |
 |
 |
 |
| 261.412.090 | MAS BT 40 | - | 63 | 3 - 88.1 | 86 - 320 | 91 | 81 | 120 | |
|
|
|
| 261.415.090 | DIN 69871 AD 40 | - | 63 | 3 - 88.1 | 86 - 320 | 91 | 81 | 120 | |
|
|
|
| 261.550.065 | MBM 55 modular | 55 | 63 | 3 - 88.1 | 86 - 320 | 66 | 96 | 95 | |
|
