Adapter for shank tools

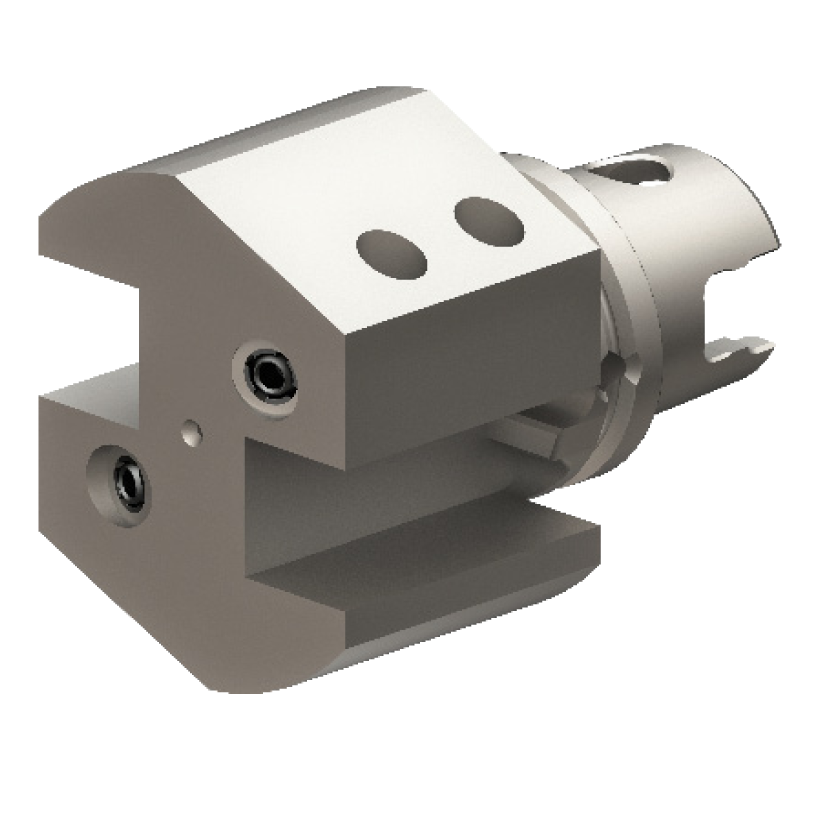

Twin Square Shank Tool Adapters KM 63 XMZ- to clamp ISO turning tools with squareshank
- adjustable cooling nozzle with internal thread
| Bestell-Nr. | B | C | D | E | L | L2 | L3 | M | dxf | step |  |
|
| KY6.V20.L22.085 | 20 | 71 | 80 | 10 | 85 | 60 | 18 | M10x20 |  |
 |
 |
 |
| KY6.V20.R22.085 | 20 | 71 | 80 | 10 | 85 | 60 | 18 | M10x20 | |
|
|
|
| KY6.V25.L22.085 | 25 | 87 | 100 | 13 | 85 | 60 | 18 | M12x20 | |
|
|
 |
| KY6.V25.R22.085 | 25 | 87 | 100 | 13 | 85 | 60 | 18 | M12x20 | |
|
|
|
