Internal turning tools
Internal turningLever lock clamping

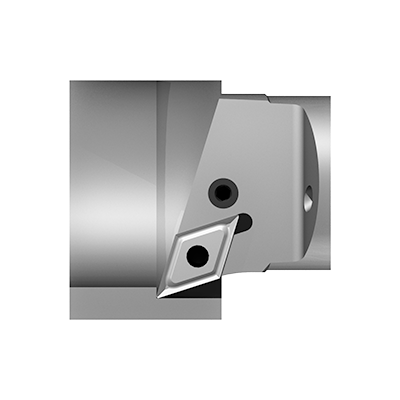

PDQN L/R
- Clamping system: The insert is tightened via toggle lever Type P
Start inquiry
Bestell-Nr. | PSC | f | D | D1 min. | A | L | Wendeplatte | dxf | step | ![]() |
|
PS4.PDF.LQB.110 | 40 | 22 | 32 | 40 | 110 | 89 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS4.PDF.RQB.110 | 40 | 22 | 32 | 40 | 110 | 89 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS5.PDF.LQB.110 | 50 | 22 | 32 | 40 | 110 | 88 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS5.PDF.RQB.110 | 50 | 22 | 32 | 40 | 110 | 88 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS6.PDF.LQC.140 | 63 | 27 | 40 | 50 | 140 | 118 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS6.PDF.LQC.180 | 63 | 27 | 40 | 50 | 180 | 158 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS6.PDF.RQC.140 | 63 | 27 | 40 | 50 | 140 | 118 | DN . . 15 06 . .* | ![]() |
![]() |
![]() | |
PS6.PDF.RQC.180 | 63 | 27 | 40 | 50 | 180 | 158 | DN . . 15 06 . .* | ![]() |
![]() |
![]() |
