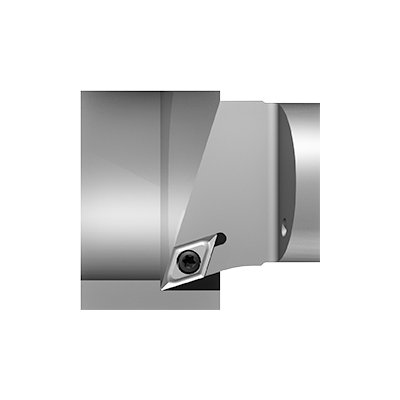

Internal turning tools
Internal turningScrew clamping
SDQC L/R
- Clamping system: The insert is tightened via screw clamping Type S
| Bestell-Nr. | PSC | f | D | D1 min. | A | L | Wendeplatte | dxf | step |  |
|
| PS4.BDB.LQA.090 | 40 | 17 | 25 | 32 | 90 | 69 | DC . . 11 T3 . . |  |
 |
 |
 |
| PS4.BDB.LQB.110 | 40 | 22 | 32 | 40 | 110 | 89 | DC . . 11 T3 . . | |
|
|
 |
| PS4.BDB.RQA.090 | 40 | 17 | 25 | 32 | 90 | 69 | DC . . 11 T3 . . | |
|
|
|
| PS4.BDB.RQB.110 | 40 | 22 | 32 | 40 | 110 | 89 | DC . . 11 T3 . . | |
|
|
|
| PS5.BDB.LQA.090 | 50 | 17 | 25 | 32 | 90 | 67 | DC . . 11 T3 . . | |
|
|
|
| PS5.BDB.LQB.110 | 50 | 22 | 32 | 40 | 110 | 88 | DC . . 11 T3 . . | |
|
|
|
| PS5.BDB.RQA.090 | 50 | 17 | 25 | 32 | 90 | 67 | DC . . 11 T3 . . | |
|
|
|
| PS5.BDB.RQB.110 | 50 | 22 | 32 | 40 | 110 | 88 | DC . . 11 T3 . . | |
|
|
|
| PS6.BDB.LQB.125 | 63 | 22 | 32 | 40 | 125 | 103 | DC . . 11 T3 . . | |
|
|
|
| PS6.BDB.LQB.160 | 63 | 22 | 32 | 40 | 160 | 138 | DC . . 11 T3 . . | |
|
|
|
| PS6.BDB.LQC.140 | 63 | 27 | 40 | 50 | 140 | 118 | DC . . 11 T3 . . | |
|
| |
| PS6.BDB.LQC.180 | 63 | 27 | 40 | 50 | 180 | 158 | DC . . 11 T3 . . | |
|
| |
| PS6.BDB.RQB.125 | 63 | 22 | 32 | 40 | 125 | 103 | DC . . 11 T3 . . | |
|
|
|
| PS6.BDB.RQB.160 | 63 | 22 | 32 | 40 | 160 | 138 | DC . . 11 T3 . . | |
|
|
|
| PS6.BDB.RQC.140 | 63 | 27 | 40 | 50 | 140 | 118 | DC . . 11 T3 . . | |
|
|
|
| PS6.BDB.RQC.180 | 63 | 27 | 40 | 50 | 180 | 158 | DC . . 11 T3 . . | |
|
|
