Internal turning tools
Internal turningScrew clamping

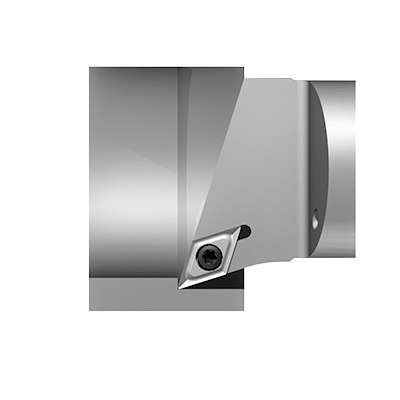

SDQC L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via screw clamping Type S
| Bestell-Nr. | HSK T | f | D | D1 min. | A | L | Wendeplatte | dxf | step |  |
|
| HA6.BDB.LQB.125 | 63 | 22 | 32 | 40 | 125 | 99 | DC . . 11 T3 . . |  |
 |
 |
 |
| HA6.BDB.LQB.160 | 63 | 22 | 32 | 40 | 160 | 134 | DC . . 11 T3 . . | |
|
|
|
| HA6.BDB.LQC.140 | 63 | 27 | 40 | 50 | 140 | 114 | DC . . 11 T3 . . | |
|
|
|
| HA6.BDB.LQC.180 | 63 | 27 | 40 | 50 | 180 | 154 | DC . . 11 T3 . . | |
|
|
|
| HA6.BDB.RQB.125 | 63 | 22 | 32 | 40 | 125 | 99 | DC . . 11 T3 . . | |
|
|
|
| HA6.BDB.RQB.160 | 63 | 22 | 32 | 40 | 160 | 134 | DC . . 11 T3 . . | |
|
|
|
| HA6.BDB.RQC.140 | 63 | 27 | 40 | 50 | 140 | 114 | DC . . 11 T3 . . | |
|
 | |
| HA6.BDB.RQC.180 | 63 | 27 | 40 | 50 | 180 | 154 | DC . . 11 T3 . . | |
|
|
|
