External turning tools
External turningScrew clamping
SVVC N
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via screw clamping Type S
- Cooling system: Turning tools for positive inserts feature an adjusted coolant nozzle
| Bestell-Nr. | HSK T | A | Wendeplatte | dxf | step |  |
|

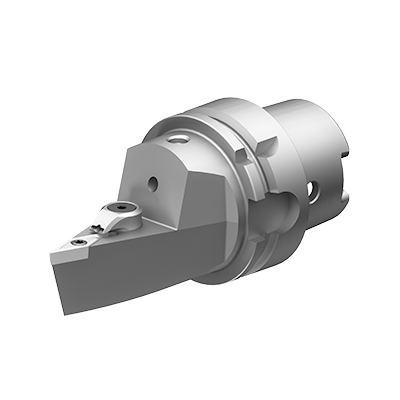

| HA4.KVB.NVA.080-HP | 40 | 80 | VC . . 16 04 . . |  |
 |
 |
 |
