External turning tools
External turningLever lock clamping
PDHN L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via toggle lever Type P
- Cooling system: Turning tools with toggle lever-clamping feature an adusted coolant nozzle.
| Bestell-Nr. | HSK T | f | D1 min. | A | rechts/links | Wendeplatte | dxf | step |  |
|

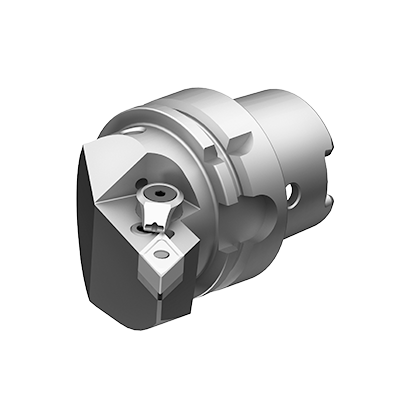

| HA4.PDF.LHA.055-HP | 40 | 27 | 50 | 55 | L | DN . . 15 04 . .* |  |
 |
 |
 |
| HA4.PDF.RHA.055 | 40 | 27 | 50 | 55 | R | DN . . 15 04 . .* | |
|
|
 |
