Aufnahmen

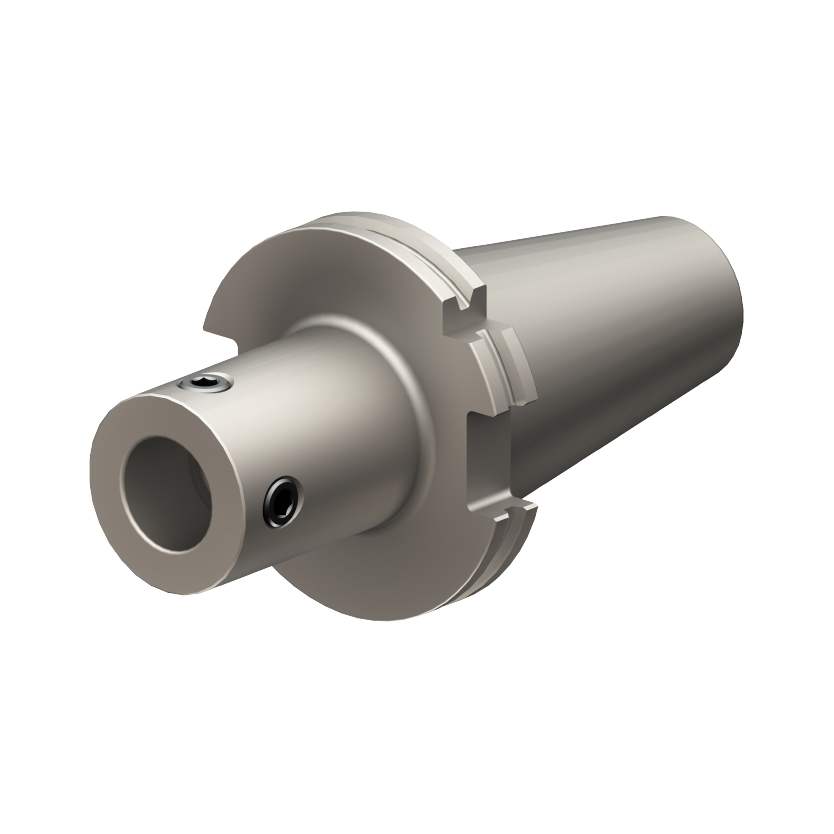

CAT 40/50 ANSI B5.50
| Bestell-Nr. | CAT | ST | D | d1 | A | L | UNC | dxf | step |  |
|
| 104.340.020.051 | 40 | ST1 | 20 | 11 | 51 | 16.00 | 5/8"-11 |  |
 |
 |
 |
| 104.340.025.056 | 40 | ST2 | 25 | 14 | 56 | 21.00 | 5/8"-11 | |
|
|
|
| 104.340.032.056 | 40 | ST3 | 32 | 18 | 56 | 21.00 | 5/8"-11 | |
|
|
|
| 104.340.039.059 | 40 | ST4 | 39 | 22 | 59 | 24.00 | 5/8"-11 | |
|
|
|
| 104.340.050.059 | 40 | ST5 | 50 | 28 | 59 | 24.00 | 5/8"-11 | |
|
|
|
| 104.340.064.075 | 40 | ST6+ | 64 | 36 | 75 | 40.00 | 5/8"-11 | |
|
|
|
| 104.350.020.061 | 50 | ST1 | 20 | 11 | 61 | 26.00 | 1"-8 | |
|
|
|
| 104.350.025.066 | 50 | ST2 | 25 | 14 | 66 | 31.00 | 1"-8 | |
|
|
|
| 104.350.032.066 | 50 | ST3 | 32 | 18 | 66 | 31.00 | 1"-8 | |
|
|
 |
| 104.350.039.069 | 50 | ST4 | 39 | 22 | 69 | 34.00 | 1"-8 | |
|
|
|
| 104.350.050.069 | 50 | ST5 | 50 | 28 | 69 | 34.00 | 1"-8 | |
|
|
|
| 104.350.064.085 | 50 | ST6+ | 64 | 36 | 85 | 50.00 | 1"-8 | |
|
|
|
| 104.350.090.085 | 50 | ST7+ | 90 | 46 | 85 | 50.00 | 1"-8 | |
|
|
|
