Roughing tools Ø23.5-153.0

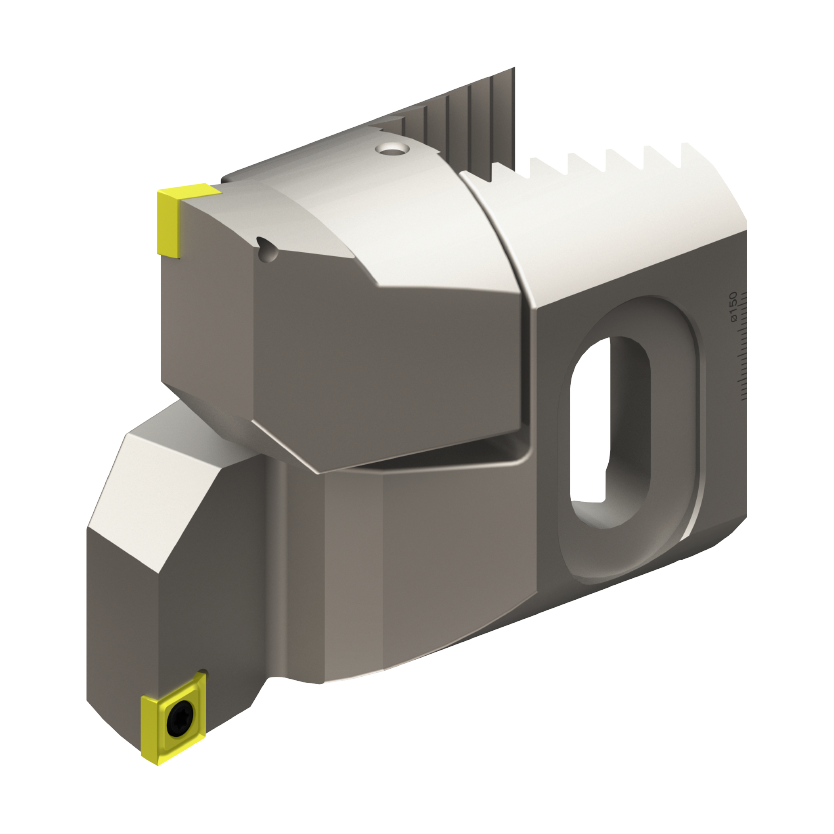

Synchronised insert holders 90°- for use in twin cutter boring heads from serie 140
- with synchro spindle both insert holders can be adjusted synchronously and symmetrically
| Bestell-Nr. | Ø A min. | Ø A max. | Wendeplatte | Zweischneiderkopf | dxf | step |  |
|
| 166.200.006C | 23.5 | 30.5 | CC . .06 02 . . | 140.200.000 |  |
 |
 |
 |
| 166.250.006C | 29.5 | 40.1 | CC . .06 02 . . | 140.250.000 | |
|
|
|
| 166.320.009C | 39.5 | 50.5 | CC . .09 T3 . . | 140.320.000 | |
|
|
 |
| 166.420.009C | 49.5 | 66.5 | CC . .09 T3 . . | 140.420.000 | |
|
|
|
| 166.550.012C | 65.5 | 87.5 | CC . .12 04 . . | 140.550.000 | |
|
|
|
| 166.720.012C | 86.5 | 115.5 | CC . .12 04 . . | 140.720.000 | |
|
|
|
| 166.940.012C | 114.5 | 153 | CC . .12 04 . . | 140.940.000 | |
|
|
|
