Roughing tools Ø23.5-153.0

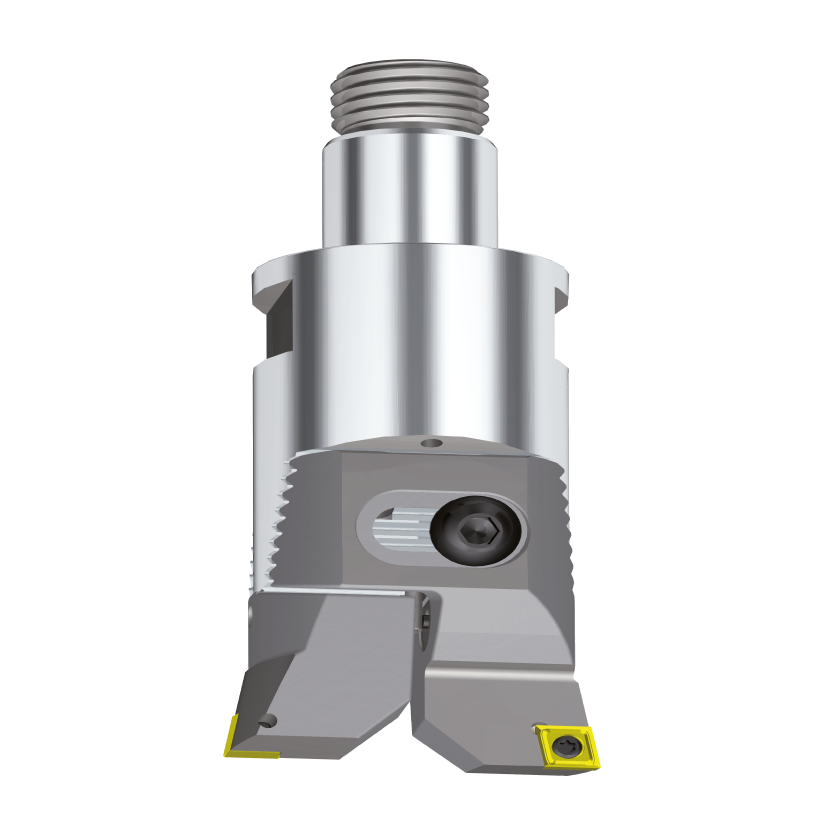

Twin cutter boring heads Ø 23.5-153- with inner coolant supply
| Bestell-Nr. | D | d1 | Ø A min. | Ø A max. | L | SW/AF | Wendeplattenhalter | dxf | step |  |
|
| 140.200.000C | 20 | 11 | 23.5 | 30.5 | 40 | 17 | 162/166/167/182 |  |
 |
 |
 |
| 140.250.000C | 25 | 14 | 29.5 | 40.1 | 50 | 22 | 162/166/167/182 | |
|
|
|
| 140.320.000C | 32 | 18 | 39.5 | 50.5 | 65 | 27 | 162/166/167/182 | |
|
|
|
| 140.420.000C | 42 | 24 | 49.5 | 66.5 | 90 | 36 | 162/166/167/182 | |
|
|
|
| 140.550.000C | 55 | 30 | 65.5 | 87.5 | 115 | 46 | 162/166/167/182 | |
|
|
|
| 140.720.000C | 72 | 40 | 86.5 | 115.5 | 150 | 60 | 162/166/167/182 | |
|
|
|
| 140.940.000C | 94 | 50 | 114.5 | 153 | 195 | 75 | 162/166/167/182 | |
|
|
|
