Roughing tools Ø23.5-153.0

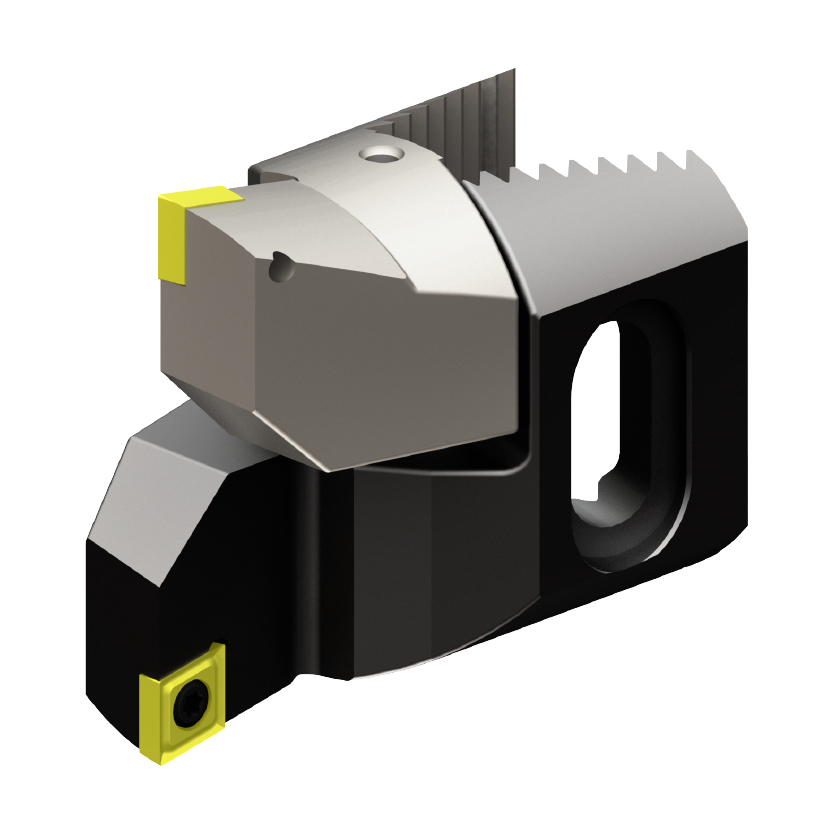

Insert holders 90° axial 0.4mm staggered- for use in twin cutter boring heads from serie H04
- for divided cut
| Bestell-Nr. | Ø A min. | Ø A max. | Wendeplatte | Zweischneiderkopf | dxf | step |  |
|
| D37.020.024.006 | 23.5 | 30.5 | CC . .06 02 . . | D04.020.024.045 |  |
 | ||
| D37.025.031.006 | 29.5 | 40.1 | CC . .06 02 . . | D04.025.031.056 | |
| ||
| D37.032.040.009 | 39.5 | 50.5 | CC . .09 T3 . . | D04.032.040.066 | |
| ||
| D37.039.051.009 | 49.5 | 66.5 | CC . .09 T3 . . | D04.040.051.075 | |
 | ||
| D37.050.067.012 | 65.5 | 87.5 | CC . .12 04 . . | D04.050.067.090 | |
 |
 |
|
| D37.064.087.012 | 86.5 | 115.5 | CC . .12 04 . . | D04.063.087.110 | |
| ||
| D37.090.115.012 | 114.5 | 153 | CC . .12 04 . . | D04.080.115.140 | |
|
|
|
