Roughing tools Ø23.5-153.0

Insert holders 70°

  • for use in twin cutter boring heads from serie H04







Bestell-Nr.Ø A min.Ø A max.WendeplatteZweischneiderkopf dxf step pdf Available from stock
D24.020.024.006 23.5 30.5 CC . .06 02 . . D04.020.024.045 download DXF         on stock
D24.025.031.006 29.5 40.1 CC . .06 02 . . D04.025.031.056 download DXF         delivered with delivery time
D24.032.040.009 39.5 50.5 CC . .09 T3 . . D04.032.040.066 download DXF         on stock
D24.039.051.009 49.5 66.5 CC . .09 T3 . . D04.040.051.075 download DXF         on stock
D24.050.067.012 65.5 87.5 CC . .12 04 . . D04.050.067.090 download DXF   download STEP   download ddf   on stock
D24.050.067.112 65.5 87.5 CN . .12 04 . . D04.050.067.090 download DXF         on stock
D24.064.087.012 86.5 115.5 CC . .12 04 . . D04.063.087.110 download DXF         delivered with delivery time
D24.064.087.116 86.5 115.5 CN . .16 06 . . D04.063.087.110 download DXF   download STEP   download ddf   on stock

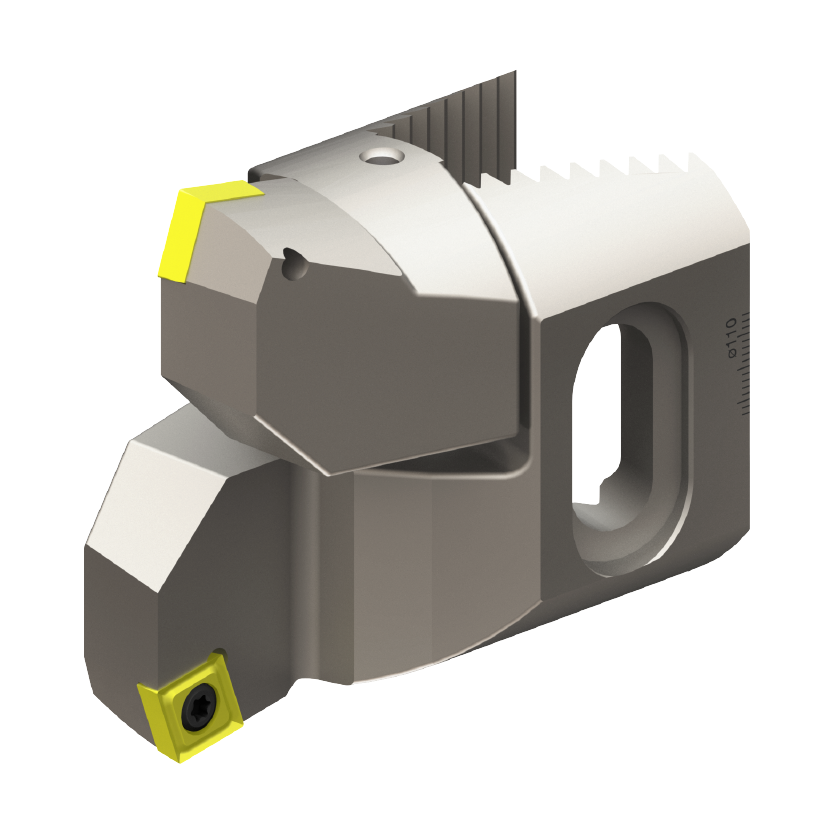

D24.090.115.116 114.5 153 CN . .16 06 . . D04.080.115.140 download DXF   download STEP   download ddf   delivered with delivery time
