Boring bar holder
PSC

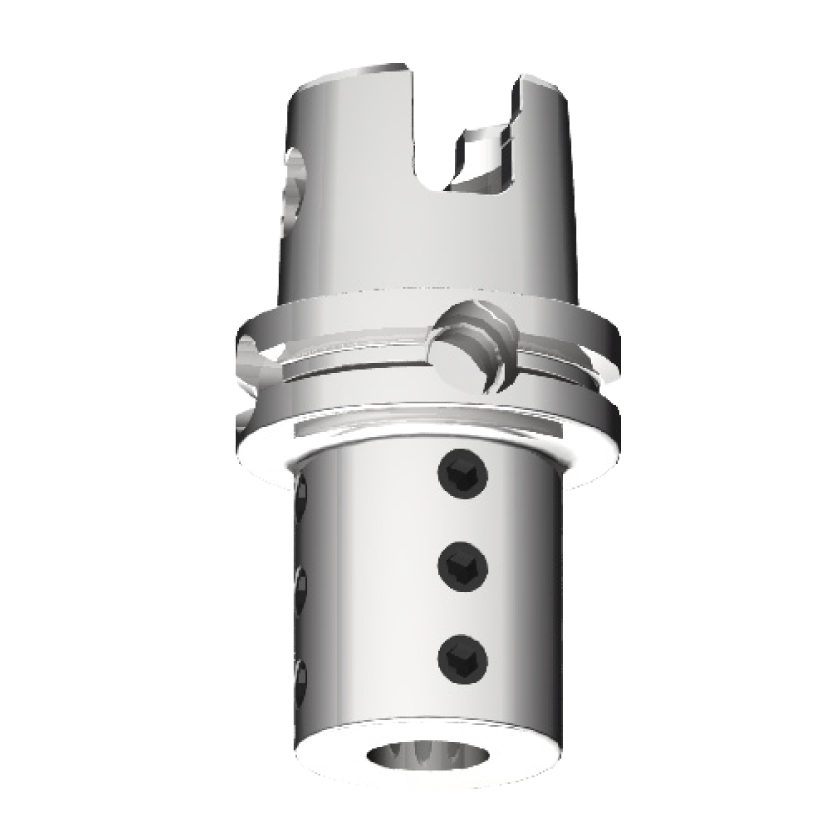

Boring bar holder KM 63 TS - to clamp boring bars
- with inner coolant supply
| Bestell-Nr. | KM TS | D1 | D2 | A | L | dxf | step |  |
|
| KU6.B06.K01.060 | 63 | 6 | 34 | 60 | 42 |  |
 |
 |
 |
| KU6.B08.K01.060 | 63 | 8 | 34 | 60 | 42 | |
|
|
|
| KU6.B10.K01.060 | 63 | 10 | 34 | 60 | 42 | |
|
|
|
| KU6.B12.K01.060 | 63 | 12 | 36 | 60 | 42 | |
|
|
|
| KU6.B16.K01.065 | 63 | 16 | 40 | 65 | 47 | |
|
|
|
| KU6.B20.K01.070 | 63 | 20 | 44 | 70 | 52 | |
|
|
|
| KU6.B25.K01.070 | 63 | 25 | 50 | 70 | 52 | |
|
|
|
| KU6.B32.K01.080 | 63 | 32 | 56 | 80 | 62 | |
|
|
|
| KU6.B40.K01.105 | 63 | 40 | 63 | 105 | - | |
|
|
|
