Boring bar holder
PSC

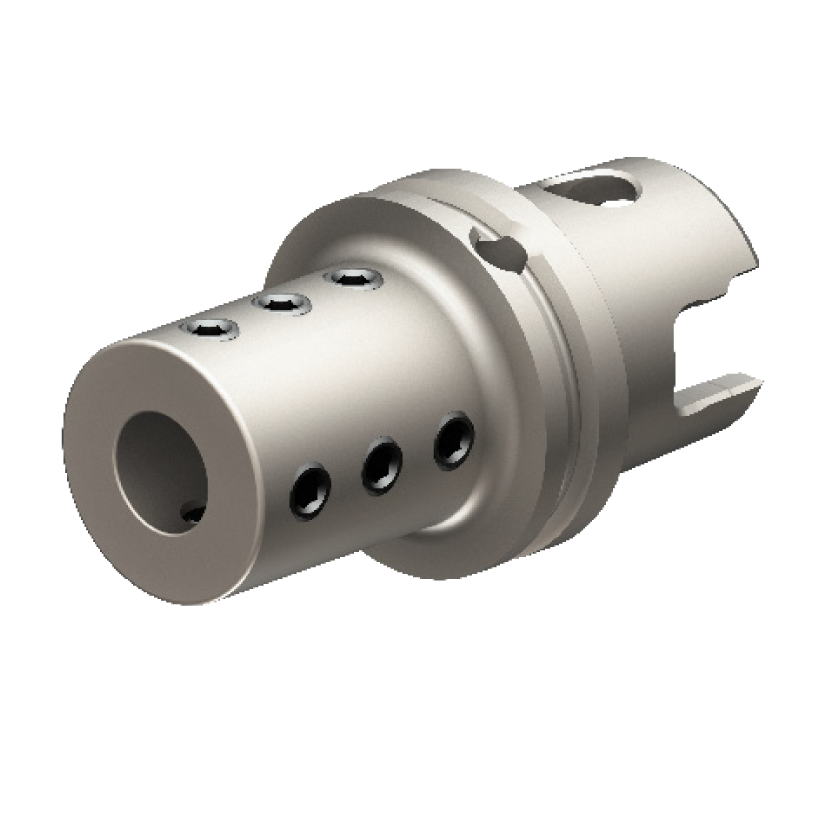

Boring Bar Holder Type ADI KM 63 XMZ - to clamp boring bars
- with inner coolant supply
| Bestell-Nr. | d | D | L | L1 | M | dxf | step |  |
|
| KY6.B06.K01.060 | 6 | 34 | 60 | 36 | M6x10 |  |
 |
 |
 |
| KY6.B08.K01.060 | 8 | 34 | 60 | 36 | M8x10 | |
|
|
|
| KY6.B10.K01.060 | 10 | 34 | 60 | 36 | M8x10 | |
|
|
|
| KY6.B12.K01.060 | 12 | 36 | 60 | 36 | M8x10 | |
|
|
|
| KY6.B16.K01.065 | 16 | 40 | 65 | 51 | M10x12 | |
|
|
|
| KY6.B20.K01.070 | 20 | 44 | 70 | 51 | M10x12 | |
|
| |
| KY6.B25.K01.070 | 25 | 50 | 70 | 51 | M10x12 | |
|
|
|
| KY6.B32.K01.080 | 32 | 56 | 80 | 66 | M12x12 | |
|
|
|
| KY6.B40.K01.105 | 40 | 63 | 105 | 66 | M12x12 | |
|
|
|
