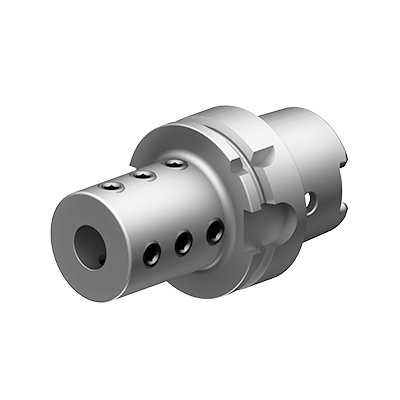

Boring bar holder
PSC
Boring bar holder - drive key way of HSK shank according to ICTM standard
| Bestell-Nr. | HSK T | D1 | D2 | A | L | dxf | step |  |
|
| HA6.B06.K01.060 | 63 | 6 | 34 | 60 | 34 |  |
 |
 |
 |
| HA6.B08.K01.060 | 63 | 8 | 34 | 60 | 34 | |
|
| |
| HA6.B10.K01.060 | 63 | 10 | 34 | 60 | 34 | |
|
|
|
| HA6.B12.K01.060 | 63 | 12 | 36 | 60 | 34 | |
|
|
|
| HA6.B16.K01.075 | 63 | 16 | 40 | 75 | 49 | |
|
|
|
| HA6.B20.K01.075 | 63 | 20 | 44 | 75 | 49 | |
|
|
|
| HA6.B25.K01.075 | 63 | 25 | 50 | 75 | 49 | |
|
|
|
| HA6.B32.K01.090 | 63 | 32 | 56 | 90 | 64 | |
|
|
|
| HA6.B40.K01.090 | 63 | 40 | 63 | 90 | 64 | |
|
|
|
