Adapter for shank tools

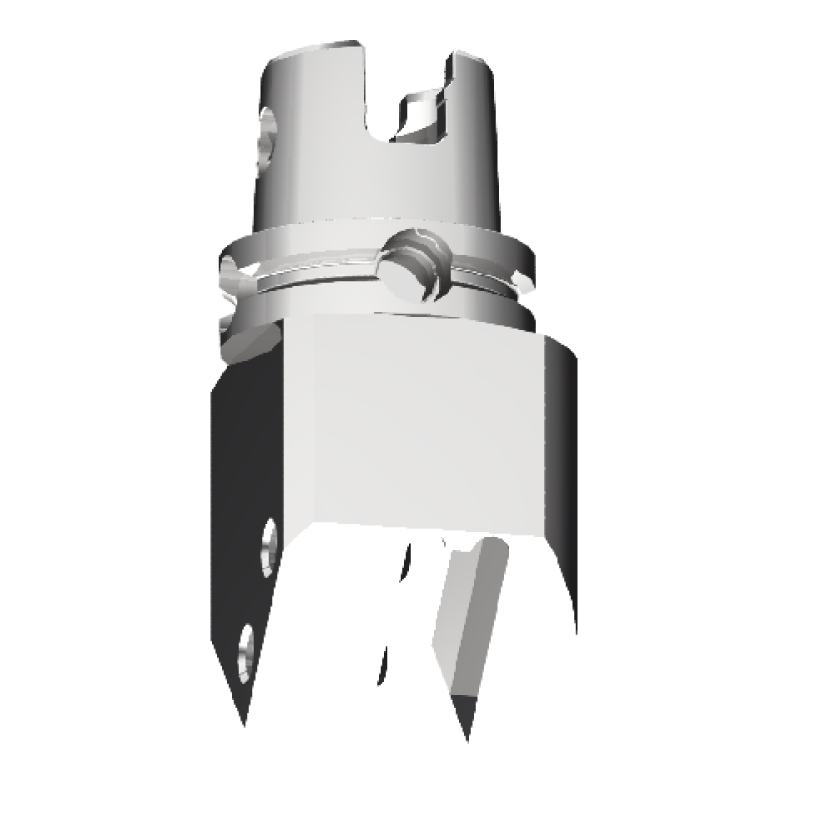

Tool holder 45° KM 63 TS- to clamp ISO turning tools with squareshank
- adjustable cooling nozzle with internal thread
| Bestell-Nr. | KM TS | f | Vierkant | A | ØD | rechts/links | dxf | step |  |
|
| KU6.V20.L12.100 | 63 | 15 | 20x20 | 100 | 80 | L |  |
 |
 | |
| KU6.V20.R12.100 | 63 | 15 | 20x20 | 100 | 80 | R | |
|
| |
| KU6.V25.L12.100 | 63 | 5 | 25x25 | 100 | 102 | L | |
|
| |
| KU6.V25.R12.100 | 63 | 5 | 25x25 | 100 | 102 | R | |
|
|
