Adapter for shank tools

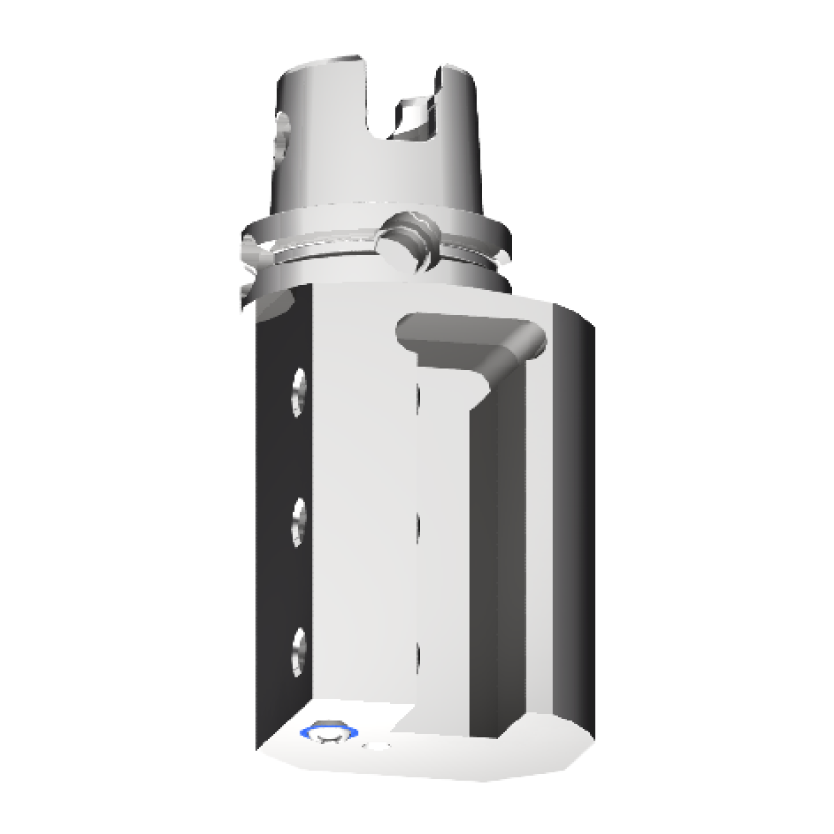

Tool holder axial KM 63 TS- to clamp ISO turning tools with squareshank
- adjustable cooling nozzle with internal thread
| Bestell-Nr. | KM TS | B | Vierkant | A | L | ØD | rechts/links | dxf | step |  |
|
| KU6.V20.L11.100 | 63 | 30 | 20x20 | 100 | 70 | 80 | L |  |
 |
 |
 |
| KU6.V20.R11.100 | 63 | 30 | 20x20 | 100 | 70 | 80 | R | |
|
|
|
| KU6.V25.L11.130 | 63 | 38 | 25x25 | 130 | 100 | 102 | L | |
|
|
|
| KU6.V25.R11.130 | 63 | 38 | 25x25 | 130 | 100 | 102 | R | |
|
|
 |
