Adapter for shank tools

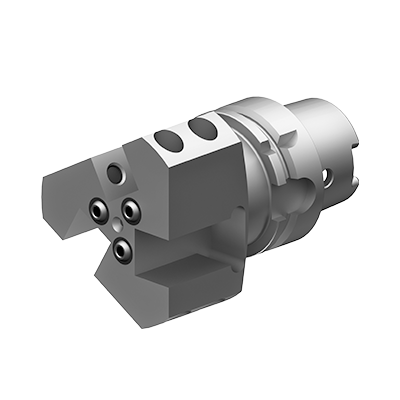

Tool holder axial triple- to clamp ISO turning tools with squareshank
- adjustable cooling nozzle with internal thread
- drive key way of HSK shank according to ICTM standard
| Bestell-Nr. | HSK T | B | Vierkant | A | L | ØD | rechts/links | dxf | step |  |
|
| HA6.V20.R31.090 | 63 | 30 | 20x20 | 90 | 58 | 90 | R |  |
 |
 |
 |
| HA6.V25.R31.100 | 63 | 40 | 25x25 | 100 | 58 | 102 | R | |
|
|
|
