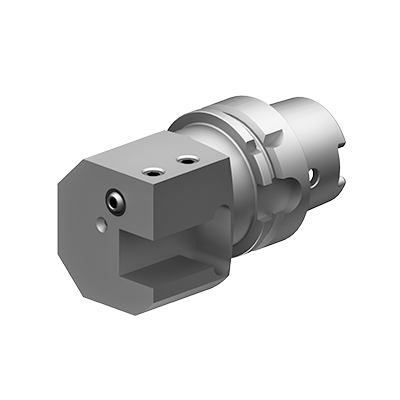

Adapter for shank tools
Tool holder axial- to clamp ISO turning tools with squareshank
- adjustable cooling nozzle with internal thread
- drive key way of HSK shank according to ICTM standard
| Bestell-Nr. | HSK T | B | Vierkant | A | L | ØD | rechts/links | dxf | step |  |
|
| HA4.V20.L11.080 | 40 | 30 | 20x20 | 80 | 45 | 80 | L |  |
 |
 |
 |
| HA4.V20.R11.080 | 40 | 30 | 20x20 | 80 | 45 | 80 | R | |
|
|
|
