Internal turning tools
Internal turningLever lock clamping

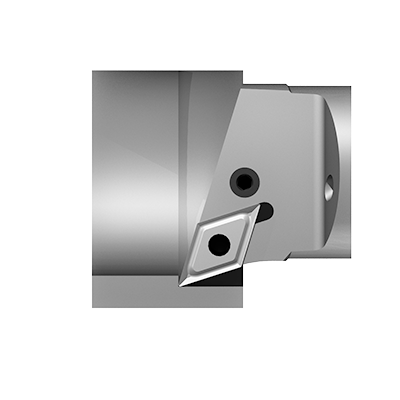

PDQN L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via toggle lever Type P
| Bestell-Nr. | HSK T | f | D | D1 min. | A | L | Wendeplatte | dxf | step |  |
|
| HA0.PDF.LQC.150 | 100 | 27 | 40 | 50 | 150 | 121 | DN . . 15 04 . .* |  |
 |
 |
 |
| HA0.PDF.LQC.200 | 100 | 27 | 40 | 50 | 200 | 171 | DN . . 15 04 . .* | |
|
|
|
| HA0.PDF.LQD.150 | 100 | 35 | 50 | 63 | 150 | 121 | DN . . 15 04 . .* | |
|
|
 |
| HA0.PDF.LQD.200 | 100 | 35 | 50 | 63 | 200 | 171 | DN . . 15 04 . .* | |
|
|
|
| HA0.PDF.RQC.150 | 100 | 27 | 40 | 50 | 150 | 121 | DN . . 15 04 . .* | |
|
|
|
| HA0.PDF.RQC.200 | 100 | 27 | 40 | 50 | 200 | 171 | DN . . 15 04 . .* | |
|
|
|
| HA0.PDF.RQD.150 | 100 | 35 | 50 | 63 | 150 | 121 | DN . . 15 04 . .* | |
|
|
|
| HA0.PDF.RQD.200 | 100 | 35 | 50 | 63 | 200 | 171 | DN . . 15 04 . .* | |
|
|
|
