Internal turning tools
Internal turningLever lock clamping

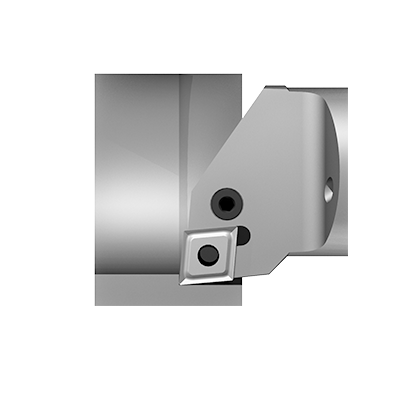

PCLN L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via toggle lever Type P
| Bestell-Nr. | HSK T | f | D | D1 min. | A | L | Wendeplatte | dxf | step |  |
|
| HA6.PCD.LLC.140 | 63 | 27 | 40 | 50 | 140 | 114 | CN . . 12 04 . . |  |
 |
 |
 |
| HA6.PCD.LLC.180 | 63 | 27 | 40 | 50 | 180 | 154 | CN . . 12 04 . . | |
|
|
|
| HA6.PCD.RLC.140 | 63 | 27 | 40 | 50 | 140 | 114 | CN . . 12 04 . . | |
|
|
|
| HA6.PCD.RLC.180 | 63 | 27 | 40 | 50 | 180 | 154 | CN . . 12 04 . . | |
|
|
|
