Internal turning tools
Internal turningScrew clamping

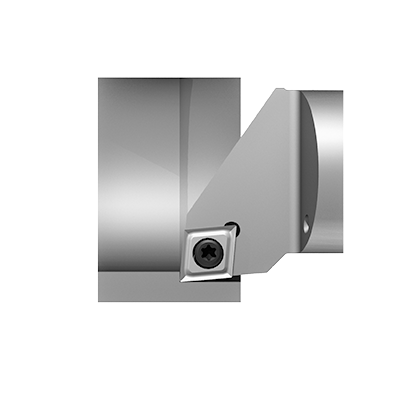

SCLC L/R
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via screw clamping Type S
| Bestell-Nr. | HSK T | f | D | D1 min. | A | L | Wendeplatte | dxf | step |  |
|
| HA4.BCC.LLA.110 | 40 | 17 | 25 | 32 | 110 | 90 | CC . . 12 04 . . |  |
 |
 |
 |
| HA4.BCC.LLA.140 | 40 | 17 | 25 | 32 | 140 | 120 | CC . . 12 04 . . | |
|
|
|
| HA4.BCC.RLA.110 | 40 | 17 | 25 | 32 | 110 | 90 | CC . . 12 04 . . | |
|
|
|
| HA4.BCC.RLA.140 | 40 | 17 | 25 | 32 | 140 | 120 | CC . . 12 04 . . | |
|
|
 |
