External turning tools
External turningTop clamping
DVVN N
- drive key way of HSK shank according to ICTM standard
- Clamping system: The insert is tightened via double-clamping Type D
- Cooling system: Turning tools with double-clamping feature an adjustable high-pressure coolant nozzle
| Bestell-Nr. | HSK T | A | Wendeplatte | dxf | step |  |
|

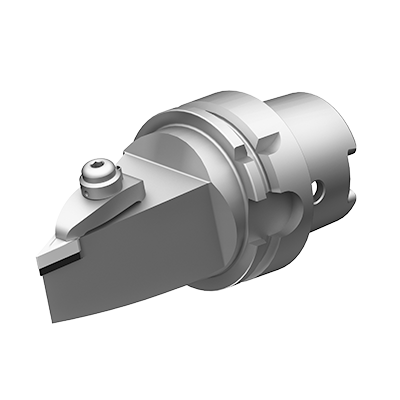

| HA0.KVD.NVA.125 | 100 | 125 | VN . . 16 04 . . |  |
 |
 |
 |
